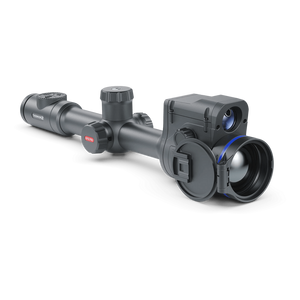

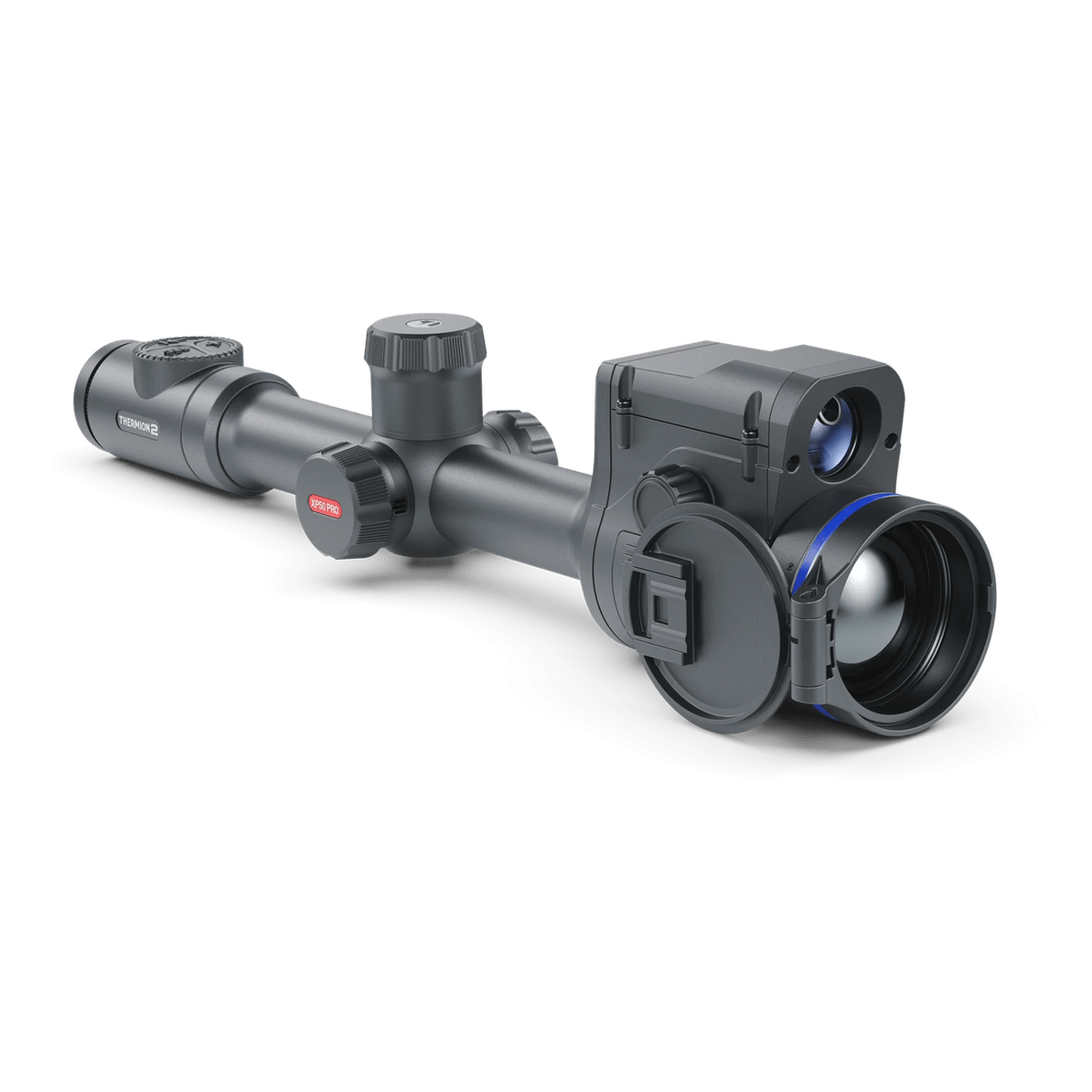

PULSAR THERMION 2 LRF XP50 PRO THERMAL RIFLE SCOPE RRP $7,899 640x480, 25mK, 17um, 1800m

The first thermal imaging riflescope with classic design and built-in laser rangefinder
The laser rangefinder is seamlessly integrated into a slim design riflescope. The rangefinder is compact, the receiver and emitter are within clearance limits of a single optical channel. The measuring range is 800 meters – the Thermion 2 LRF XP50 Pro provides the hunter with an accurate sense of distance at the hunting site helping to take a precise shot.

High Definition Thermal Sensor 640x480 pixel @ 17 µm
Sharp, richly contrasted thermal imaging for enhanced identification of animals, their extremities and even the smallest details, i.e. branches, leaves, grass and terrain.

Unprecedented Thermal Sensor Sensitivity
Thermal imaging sensor with NETD <25mK ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imaging.

Fast Aperture Lens F50/1.0
The characteristics of thermal imaging optics have a decisive influence on a thermal imager’s ability to capture even the lowest radiation levels. Ultimate detection efficiency is achieved with the fast lens of the Thermion 2 LRF XP50 Pro (F50/1.0) thermal imager in combination with the highly sensitive thermal sensor. The Thermion 2 LRF XP50 Pro gives users the best quality, most detailed & high-contrast, informative imagery every time, even during rain or fog, when the temperature contrast of the observed scene is minimal.

Long detection range up to 1800 m
A powerful long-distance F50/1.0 objective lens combined with a 640x480@17µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities. A standard 1.8m tall object can be detected up to 1800 m away in complete darkness.

Up to 10 hours of battery life on a single charge
The Thermion 2 LRF XP50 Pro is powered with two rechargeable batteries: one built-in with a capacity of 4.9 Ah, the other replaceable with a capacity of 2 Ah. A single charge guarantees up to 10 hours of battery life, which covers the time of active use of the scope for a hunt. The embossment on the body of the replaceable battery for accurate determination of the correct position makes it possible to quickly and confidently replace a flat battery with a new one in complete darkness by touch.

High-precision ambidextrous lens focusing
Objective lens with internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy either left- or right-handed.

Clear on Target!
Variable magnification from 2x to 16x

The base magnification of Thermion 2 LRF XP50 Pro riflescopes increases by four times – 2x to 16x. The zoom changes either gradually by 2x steps or continuously to set the ideal ratio of magnification and visible field of view for specific situations.

High-precision aiming in the "Picture-in-picture" mode

The “Picture-in-picture” function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to closely see the image in the aiming area and have visual control of the entire field of view at the same time.

5 individual shooting profiles / 50 zeroing distances
Zeroing settings are saved in a shooting profile. The Thermion 2 LRF XP50 Pro memory contains up to five shooting profiles for several types of weapons or cartridges. Each profile can hold up to ten zeroing distances.

A selection of 10 reticle shapes in 9 color modes
A reticle is electronically displayed in the same plane as the target. The Thermion 2 LRF XP50 Pro memory contains ten reticle configurations and functions (direct shot type, ballistic, scalable and regular), all available in nine colors.

Rugged and Reliable
Mounting on standard 30 mm rings

The Thermion 2 LRF XP50 Pro offers visual aesthetics on any hunting weapon. From the outside the riflescope resembles a classic day sight in a 30mm housing. This form factor provides flexibility for mounting the scope on hunting weapons using proven ring solutions.

Instant Start-up

Just 3 seconds from the moment you press the power button the Thermion 2 LRF XP50 Pro is completely ready for work.

High caliber recoil resistance: 12 gauge, 9.3x64, .375H&H

Thermion 2 LRF XP50 Pro thermal riflescopes are high impact resistant and can be used with rifled hunting weapons with calibers of 9.3x64, .30-06, .300, .375H&H, etc., as well as with smooth-bore and pneumatic weapons.

Completely waterproof IPX7

With an IPX7 waterproof rating, the Thermion 2 LRF XP50 Pro riflescopes work in conditions of high humidity and heavy rain and can withstand half an hour immersion in water to a depth of 1 meter.

Operating temperature range: -25 to +50 °C

Thermion 2 LRF XP50 Pro riflescopes are designed to operate in a wide range of temperatures -25 to +50 °C. The frost-resistant AMOLED display has a standout quick response time and ensures a sharp image when observed in motion.

Image. Quality
High contrast HD AMOLED display
1024x768 HD AMOLED display has enhanced color rendering, power saving, a high contrast image and quick-response, providing clear and smooth images for on-the-move observation or in cold conditions.

A selection of 8 color palettes

A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Wide-angle eyepiece for comfortable observation

The wide-angle eyepiece (29.5°) and wide viewing angle of the HD quality AMOLED display provide comfortable image perception and the absence of the keyhole effect with safe removal of the exit pupil of 50mm. Observation with the Thermion 2 LRF does not strain your eyes and enables the hunter to fully concentrate on the hunting process.

Photo and video recording
Keep the best moments of observation and share them with your friends and hunting colleagues. One touch of a button is enough to capture an interesting moment or start recording a video. 16 GB of internal memory will give the ability to record many hours of video and tens of thousands of photos.

Stream Vision 2. WiFi integration with iOS and Android devices
The built-in WiFi module will connect the device with smartphones based on Android and iOS via the Stream Vision 2 mobile application. This combination provides a great opportunity, such as wireless update of the device software, transmission of images to the screen of a mobile device in real time, remote control of digital functions of the device and many others. Users registered in the application are provided with cloud storage space for photos and videos taken with a digital or thermal imaging device.

SPECIFICATIONS

Main Sensor - 640x480 @ 17 µm (NETD <25 mK)

Objective lens - F50/1.0

Magnification, x 2-16

Field of view (HxV), 12.4x9.3 / 21.8x16.3 degrees / m@100m

Detection range, 1800 m

Sensor Type - uncooled

Frame rate, 50 Hz

Eye relief, 50 mm

Display Type - AMOLED

Resolution, pixels - 1024x768

Laser Rangefinder Safety class for laser equipment according to IEC 60825-1:2014

1

Wavelength, 905 nm

Max. measuring range, 800 m

Measurement accuracy,  ± 1m

Reticle - Click value, H/V, mm at 100 m 21 / 21 (on minimum magnification)

Click range, H/V, mm at 100 m 4200 / 4200

Number of preloaded reticles - 10+

Video / photo resolution, 1024x768 pixel

Video / photo format .mp4 / .jpg

Built-in memory, 16 GB

Wireless Protocol - Wi-Fi

Wireless Standard IEEE 802.11 b/g/n/ac

Frequency, 2.4 / 5 GHz

Bluetooth Wireless Protocol BLE 4.2

Wireless Standard IEEE 802.15.1

Degree of protection,IP?7 (waterproof)  IP code (IEC60529)

Operating temperature range, -25 – +50°?

Max. recoil power on rifled weapon (Eo), 6000 Joules

Shock resistance on the smooth-bore rifles, 12 caliber

Mounting brackets on weapon - Standard 30 mm rings

Remote control - Pulsar BT (optional)

Supported Application - Stream Vision 2

Power Supply

Output voltage, 3.0 – 4.2 V

Battery type

Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 4.9 A·h Battery (internal)

Capacity, 2000 (external) + 4900 (internal) mAh

Operating time on battery pack (at t=22°C), 10 h *

External power supply, V USB type ? (5V)

Body material - Aluminum alloy

Dimensions,420x78,5x94,5 mm

Weight, 0.97 kg
