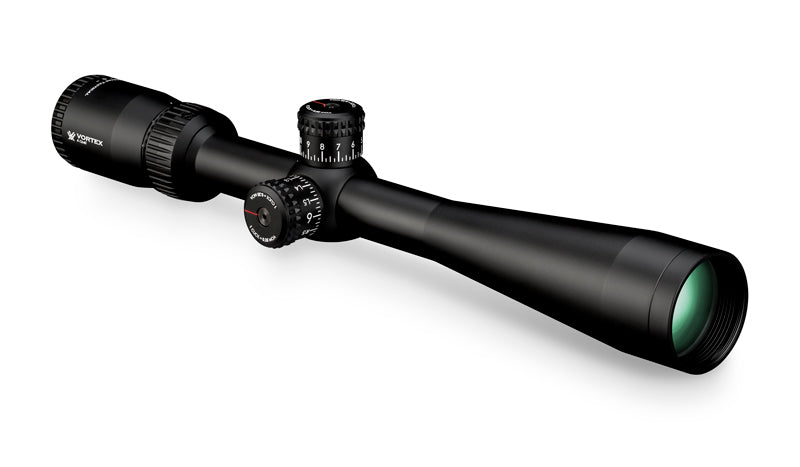

Vortex Diamondback 4-12X40 Vmr1 MOA Tactical
SKU : VODBK10025
Regular price $505.00
Vortex Diamondback 4-12X40 Vmr1 MOA Tactical
$505.00
Vortex Diamondback 4-12X40 Vmr1 MOA Tactical
Product Description
FEATURES
Optical Features
XD Lens Elements - Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
XR Fully Multi-Coated - Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle - Scale of reticle maintains the same ideally sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Construction Features
Tube Size - 1-inch diameter.
One Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and water resistance.
Aircraft Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof - Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof - Rugged construction withstands recoil and impact.
Hard Anodized Finish - Highly durable low glare matte finish helps camouflage the shooter's position.
Precision Glide Erector System - Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
Exposed Tactical Turrets - Diamondback Tactical scopes feature tactical windage and elevation turrets with Zero Reset making adjustments back to zero easy and quick.
Internal Mechanism Design Features
Precision-Glide Erector System
Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
Convenience Features
Fast Focus Eyepiece - Allows quick and easy reticle focusing.
Fiber Optic Radius Bar - The patented fiber optic Radius Bar visually assists tracking turret rotations.
Magnification Rib - The raised rib on the magnification ring facilitates fast magnification changes in the heat of action
VMR-1 Reticle
Designed to maximize long distance shooting and ranging abilities, the VMR-1 MOA reticle can be used to effectively determine ranges, holdovers, windage corrections and moving target leads.
SPECIFICATIONS
Magnification - 4-12 X
Objective Lens Diameter - 40 mm
Eye Relief - 3.8 inches
Field of View - 23.6-7.9 feet/100 yards
Tube Size - 1 Inch
Turret Style - Tactical
Adjustment Graduation - 1/4 MOA
Travel per Rotation - 12 MOA
Max Elevation Adjustment - 70 MOA
Max Windage Adjustment - 70 MOA
Parallax Setting - 100 yards
Length - 36cm / 14.2 inches
Weight - 459 grams / 16.2 ounces
