Roll over to zoom
Real thermal footage of warthogs, shown in each palette. Palettes only change the colours; the heat data is the same.
- Across the circle at this distance
- Magnification
- What you can tell
The view starts at this unit's own magnification. The further away the animal, and the wider the field of view, the less detail the sensor picks up, until you can tell something warm is there but not what it is. Zooming in makes it bigger, not sharper.
- Magnification
- Sharpness
Digital zoom crops the sensor image and enlarges what is left. It adds no detail, so each step makes the picture bigger but softer.
Example image only. Not filmed through this product. Pig and deer stills supplied by HIKMICRO and Nocpix; fox and rabbit are thermal-style images we made from photos by A. Omer Karamollaoglu (CC BY 2.0) and Alexis Lours (CC BY 4.0). Field of view and zoom are simulated from this unit's 640×512 sensor and 35 mm lens, 2× base magnification and 1920×1080 screen. Real results change with weather, display and settings.
Compare with other thermals side by sideDraco D635 4K Thermal Binocular 850nm
Be the first to review · Ask a question SKU: PFI-D635-4KThanks — we'll email you when it's back.
Good for
| Need | Fit | Why |
|---|---|---|
| Laser ranging | ●●● | 1,000 m LRF |
| Fox & pest control | ●●○ | 1,800 m detection |
| Long-range ID | ●●○ | 640×512 sensor, 35 mm lens |
| Close country & scrub | ●●○ | 12.52° field of view |
●●● Excellent · ●●○ Very good · ●○○ Good
Compare: Draco D225 4K Binocular 850nm · Draco D225N 4K Binocular 940nm · Draco D335 4K Binocular 850nm · Draco D335N 4K Binocular 940nm · Draco D635N 4K Binocular 940nm · All Pixfra

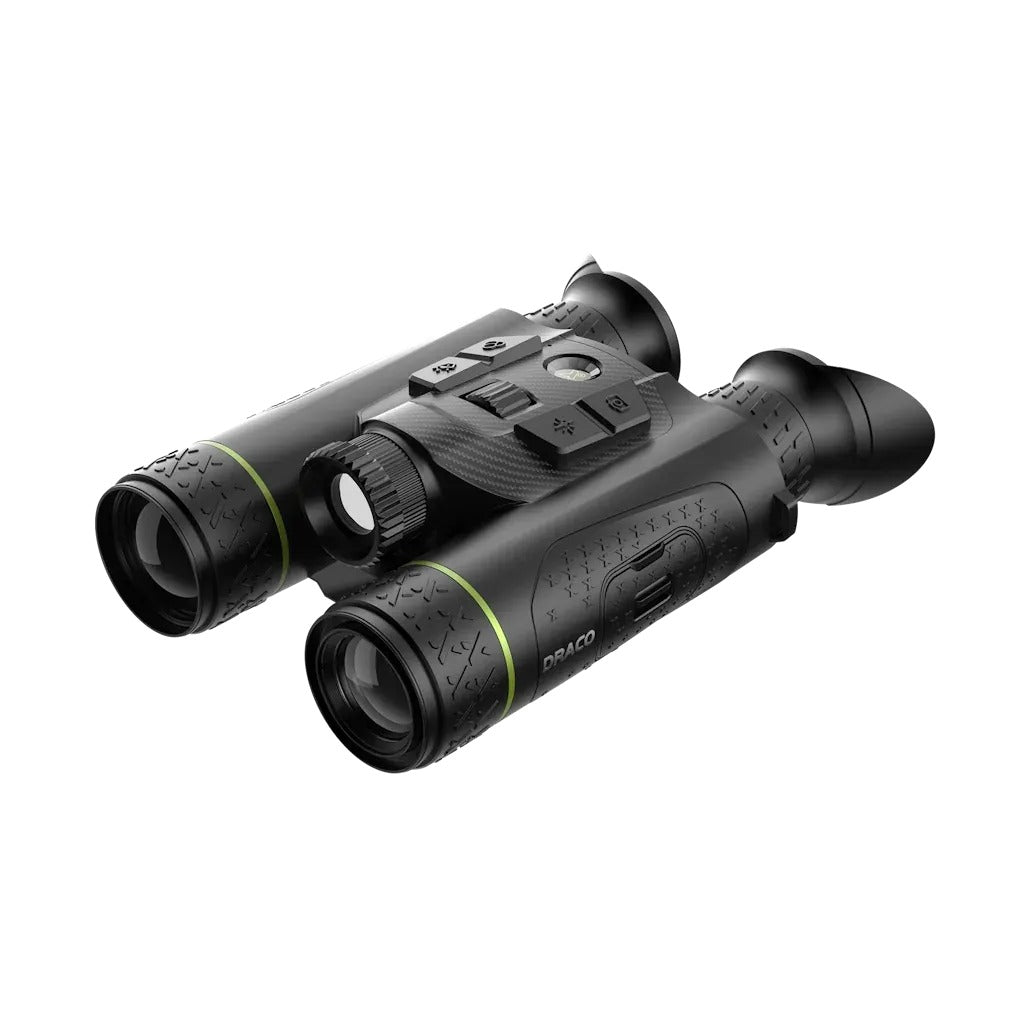

Pixfra Draco D635 4K Thermal Binocular 850nm – Thermal, 4K Night Vision, Rangefinder and IR in One
Four tools in one binocular: thermal imaging, 4K digital night vision, a 1,000 m laser rangefinder and a detachable 850nm IR illuminator.
The thermal side runs a 640 × 512, 12 µm sensor rated ≤15 mK behind a 35 mm lens, with detection rated to 1,800 m by Pixfra.
At about 620 g with IP67 sealing, it's light enough to run one-handed.
4-in-1 Functionality
Thermal to find them, 4K night vision to see the detail, the laser to range them, and 850nm IR to light things up. One unit around your neck instead of three.
4K Digital Night Vision
Pixel-rich 4K UHD night vision gives a clear picture in low light, and improved sensitivity holds detail when there's barely any light at all.
High-Sensitivity Thermal
640 × 512 resolution and ≤15 mK NETD pick up subtle heat differences and show richer thermal detail in cluttered country.
Full HD Display
A 0.49-inch 1920 × 1080 OLED with an 18× ocular and curved interface gives a big, sharp view.
Binocular-Style Controls
A multi-function wheel and four buttons work like the zoom on a traditional binocular. Easy to drive by feel without looking.
Steady, Clear Viewing
Electronic image stabilisation and defog keep the picture steady and clear in rough weather. Menu memory drops you back where you were if you re-enter within 15 seconds.
Detachable 850nm IR Illuminator
Extra reach for the night vision channel when you need it, and it comes off when you don't.
Runtime and Power
A replaceable 18650 gives about 8 hours, with USB-C external power as a backup. Dual-band Wi-Fi connects to the Pixfra app.
Key specs
| Sensor | 640×512, 12 µm |
|---|---|
| NETD | ≤15 mK |
| Lens | 35 mm F1.0 |
| Magnification | 2.5× base, 1×–8× digital |
| Field of view | 12.52° × 10.0° |
| Detection range | 1,800 m |
| Display | 1920×1080 |
| Laser rangefinder | Up to 1,000 m |
| Power | Replaceable 18650, up to 8 h |
| Build | IP67, 620 g |
Not sure which Pixfra suits how you hunt? Give us a call or send a message and we'll help you pick.
| Brand | Pixfra |
|---|---|
| Sensor resolution | 640×512 |
| Pixel pitch (µm) | 12 |
| NETD (mK) | ≤15 |
| Lens (mm) | 35 |
| Aperture | F1.0 |
| Magnification | 2.5× base, 1×–8× digital |
| Field of view | 12.52° × 10.0° |
| Display | 1920×1080 |
| Refresh rate (Hz) | 50 |
| Detection range (m) | 1800 |
| Rangefinder | Laser 1000 m |
| Battery life (hrs) | 8 |
| Battery type | Replaceable 18650 |
| External battery | USB-C (5 VDC) |
| Weight (g) | 620 |
| Waterproof (IP) | IP67 |
| Wi-Fi / app | Dual-band Wi-Fi, Pixfra app |
| Recording | Photo and video, 64 GB |
| Operating temperature | -30 to +55 °C |
