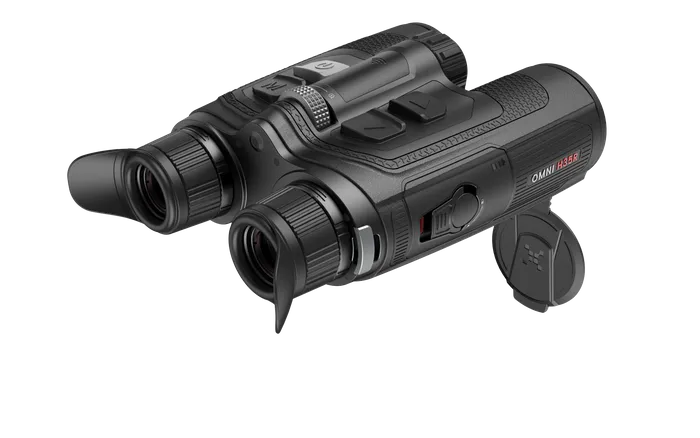

Nocpix Omni H35R Multi Spectral Thermal Binoculars
Nocpix Omni H35R Multi Spectral Thermal Binoculars
Nocpix Omni H35R Multi Spectral Thermal Binoculars
Nocpix Omni H35R Multi Spectral Thermal Binoculars
Nocpix Omni H35R Multi Spectral Thermal Binoculars
Nocpix Omni H35R Multi Spectral Thermal Binoculars

Nocpix Omni H35R Multi Spectral Thermal Binoculars

SKU : OH35R

Loading Add-ons…

Regular price $5,199.95 Save $-5,199.95


/
📦
Stock Availability
Pakenham Store
Out of Stock
Warehouse Availability
Call for stock availability

Nocpix Omni H35R Multi Spectral Thermal Binoculars

$5,199.95

Nocpix Omni H35R Multi Spectral Thermal Binoculars

Product Description

Thermal imaging with a 640 × 512 sensor

The Omni H35R uses a 640 × 512 thermal sensor with a 35 mm F0.9 objective, providing 2× base magnification and adjustment up to 16×. Its field of view covers 21.9 × 16.5 m at 100 m, giving a defined area for searching and following subjects within the thermal scene.

NETD ≤15 mK supports the display of small temperature differences, while the thermal channel operates at 50 Hz. The stated detection range is 1800 m for a 1.7 × 0.5 m target at P(n)=99%. This is a detection specification, rather than a stated identification distance.

Digital detail and infrared illumination

The digital channel combines an 8192 × 6144 sensor with a 50 mm F1.8 lens, providing a separate view for examining visible detail. Magnification extends from 3× to 18×, with day, dusk and night modes available as lighting conditions change. Exposure and saturation adjustments allow the digital image to be set independently of the thermal view.

An 850 nm IR illuminator is included with the H35R. Its low, medium and high output settings provide control over infrared illumination during digital night observation. The illuminator is removable, and the binocular also supports an interchangeable 940 nm unit. Settings for each imaging channel are retained when switching views.

Viewing controls and distance measurement

Separate thermal and digital focus wheels allow direct adjustment of the active channel. The central zoom ring changes magnification, while electronic image stabilisation supports steadier handheld observation. A 1600 × 1200 AMOLED display presents the image through eyepieces with 25 mm eye relief, individual dioptre adjustment and adjustable spacing.

The integrated Class 1 laser rangefinder measures distances up to 1000 m and shows readings within the viewing interface. Single ranging provides a one-off measurement, while continuous modes update the distance over a selected period or remain active continuously. Ballistic calculation is supported, making distance and ballistic reference information available during observation.

Recording and power in the field

Photographs and video are saved to 64 GB of internal memory, with optional sound recording and an onboard gallery for review. Wi-Fi links the binocular to the NocPix app for live viewing and control. N-Link supports image and range data sharing between compatible devices.

Power comes from an internal battery and two replaceable 18650 cells. Maximum runtime is 7.5 hours at 22°C, depending on function use. USB-C accepts external power and charges the internal battery; removable cells charge separately. The IP67-rated housing incorporates a tripod connection for stationary use, and the supplied portable bag and neck/shoulder strap provide carrying options.


Specification Details
Model NocPix Omni H35R
Imaging channels Thermal imaging and digital day/night vision
Thermal detector 640 × 512 pixels; 12 μm pixel pitch
Thermal sensitivity NETD ≤15 mK
Frame rate Thermal: 50 Hz; digital: 50 Hz
Thermal objective lens 35 mm F0.9
Thermal magnification 2×–16×
Thermal field of view 12.5° × 9.4°; 21.9 × 16.5 m at 100 m (horizontal × vertical)
Thermal detection range 1800 m for a 1.7 × 0.5 m target, P(n)=99%
Digital detector 8192 × 6144 pixels; 1.2 μm pixel pitch
Digital objective lens 50 mm F1.8
Digital magnification 3×–18×
Digital field of view 8.8° × 6.6°; 15.4 × 11.5 m at 100 m (horizontal × vertical)
Digital detection range 1000 m for a 1.7 × 0.5 m target, P(n)=99%
Low-light colour imaging and dynamic range Colour imaging down to 0.001 lux; 140 dB dynamic range
Display 0.5-inch AMOLED; 1600 × 1200 resolution
Eyepiece specifications 25 mm eye relief; 12 mm exit pupil; -4 to +4 D dioptre adjustment
Interpupillary adjustment Adjustable eyepiece spacing. Adjustment range: Not specified by manufacturer.
Viewing functions Electronic image stabilisation; picture-in-picture; selectable palettes; Ultra-clear mode
Image calibration Automatic and manual calibration; shutter and background calibration; pixel defect correction
Laser rangefinder 1000 m measuring range; Class 1; single and continuous ranging
Rangefinder accuracy and wavelength Not specified by manufacturer.
Ballistic calculation Supported
Recording and storage 64 GB internal memory; JPEG photographs; MP4 video; microphone; onboard gallery
Wireless connectivity Wi-Fi; Bluetooth-assisted app connection; NocPix app support; N-Link image and range data sharing
Controls Four buttons; separate thermal and digital focus wheels; central digital zoom ring; app customisation of selected buttons
IR illumination Removable 850 nm illuminator supplied; low, medium and high output settings; compatible with interchangeable 850 nm and 940 nm illuminators
Battery system Built-in battery plus two replaceable 18650 batteries; removable cells support insertion in either polarity orientation
Maximum operating time 7.5 hours at 22°C; actual duration depends on use of functions including Wi-Fi, video recording and IR illumination
External power and charging 5 V USB-C input; internal battery charging through the device; removable 18650 batteries require a separate charger
Housing and mounting Magnesium-alloy housing; PVC grip surfaces; 1/4-20 UNC tripod connection
Ingress protection IP67
Operating temperature -20°C to +50°C
Weight <900 g without batteries
Dimensions <198 × 144 × 75 mm
