InfiRay Eye III E6+ Thermal Monocular
SKU : EYE3E6PLUS
Regular price
$1,954.00
$4,299.00
Save
$2,345.00
Thank you for your submission!
We will get back to you soon.

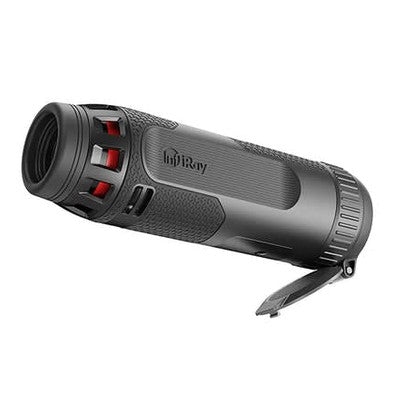

InfiRay Eye III E6+ Thermal Monocular
$1,954.00
InfiRay Eye III E6+ Thermal Monocular
Product Description
The Eye III E6+ contains a crisp 35mm objective lens focusing the available thermal radiation. The field of view on this thermal monocular is 12.5 by 10 degrees. It features a 4 times digital zoom to enlarge your subject.
Behind the lens of the Eye III E6+ you can find the (uncooled, 12 micrometer) 640 x 512 pixels core refreshing the image at 50Hz. The thermal contrast (NETD) of this thermal monocular is <25mK.
The physical dimensions of this thermal monocular read 180 x 54 x 54mm (lwh) weighing in at 480 grams. This device is rated IP67. It handles dust, shocks, water (splashes) and submersion under water. It's rated for operating in temperatures between -20°C and 50°C.
The Eye III E6+ can be used in scanning and surveillance, hunting adventures and police operations.
Features
- Ergonomic Design and Lightweight
- Improved Image Processing Algorithm
- Starts/shuts down by opening/closing lens-cap
- Scrollwheel Menu Navigation
- Magnetic Charger
- Record Videos to Build-In Storage
- Digital Compass
- WiFi Streaming
Specifications
| Lens | 35 mm |
| Diopter adjustment | -5 +5 |
| Optical zoom | 3 x |
| Digital zoom | 4 x |
| FOV (h/v) | 12.5 ° / 10 ° |
| Thermal type | Uncooled |
| Sensor resolution (h/v) | 640 pixels / 512 pixels |
| Pixel pitch | 12 µm |
| Sensitivity | 25 mK |
| Display resolution (h/v) | 1440 pixels / 1080 pixels |
| Refresh rate | 50 Hz |
| Image polarity | White hot, black hot, red hot, rainbow |
| Output screen color | Full color |
DRI Ranges
DRI stands for Detection, Recognition and Identification and is based on the widely used Johnson's criteria.
- Detection Detect if an object is present
- Recognition See what type of object it is (i.e. person, vehicle, airplane)
- Identification For example see if someone is a friend or foe
| Detection | Recognition | Identification | ||
|---|---|---|---|---|
| Rabbit | 525 meters | 131 meters | 65 meters | |
| Person | 1847 meters | 461 meters | 230 meters | |
| Vehicle | 4472 meters | 1118 meters | 559 meters |
| Lens | 35 mm |
| Diopter adjustment | -5 +5 |
| Optical zoom | 3 x |
| Digital zoom | 4 x |
| FOV (h/v) | 12.5 ° / 10 ° |
| Thermal type | Uncooled |
| Sensor resolution (h/v) | 640 pixels / 512 pixels |
| Pixel pitch | 12 µm |
| Sensitivity | 25 mK |
| Display resolution (h/v) | 1440 pixels / 1080 pixels |
| Refresh rate | 50 Hz |
| Image polarity | White hot, black hot, red hot, rainbow |
| Output screen color | Full color |
