Compare with other thermals side by sideStellar LRF SX75L 4.0 Thermal Scope
5.0 · 6 reviews · Ask a question SKU: SX75L 4.0Thanks — we'll email you when it's back.
Good for
| Need | Fit | Why |
|---|---|---|
| Fox & pest control | ●●● | 3,600 m detection |
| Long-range ID | ●●● | 1280×1024 sensor, 75 mm lens |
| Ranging & ballistics | ●●● | 1,200 m in-lens LRF + ballistic calculator |
| All-night runtime | ●●○ | Up to 7 h (LRF on) |
| Heavy calibres | ●●● | 6000 J recoil rating |
●●● Excellent · ●●○ Very good · ●○○ Good
Compare: HIKMICRO Stellar range · HIKMICRO thermal scopes

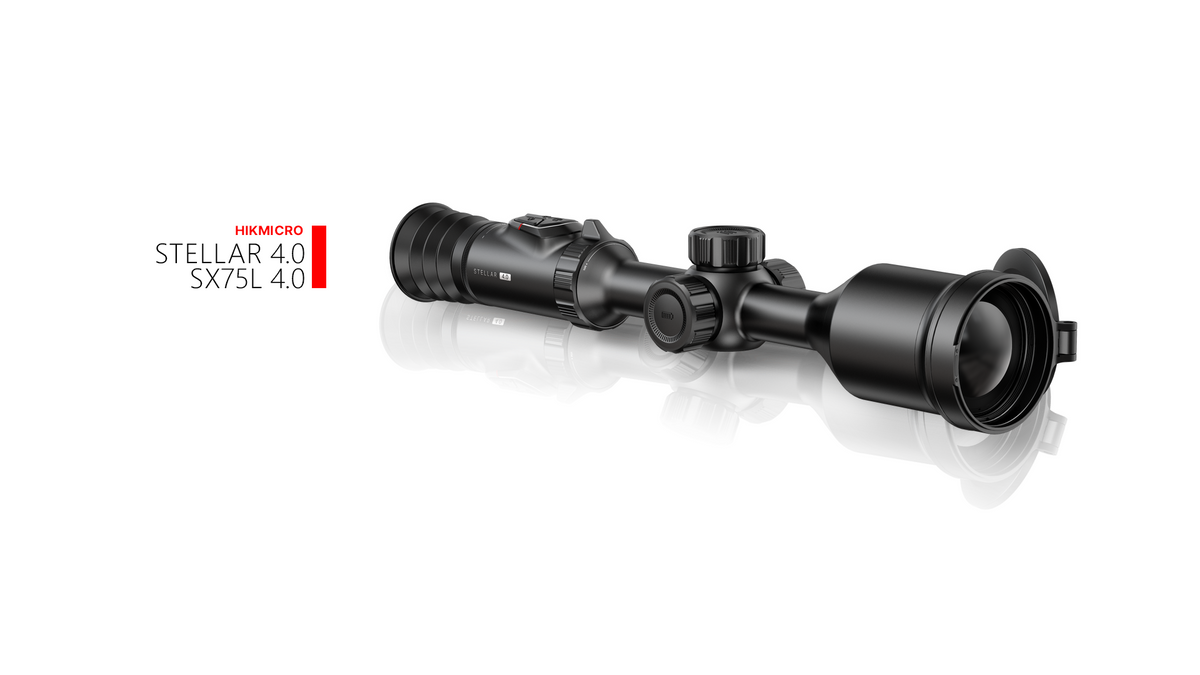

HIKMICRO Stellar LRF SX75L 4.0 Thermal Rifle Scope
The Stellar SX75L 4.0 puts a 1280×1024 thermal detector, a 75 mm F1.2 lens and a 1,200 m laser rangefinder into one traditional-looking rifle scope. The 1280 sensor gives you a big, clean picture with heaps of zoom headroom, so you can confirm what you're looking at well out past normal shooting distances. It runs a standard 30 mm tube, so it sits in normal scope rings.
Under 12 mK sensitivity
The thermal module is rated under 12 mK NETD, so it picks up small temperature differences. That means a clearer outline on a fox in long grass or a pig against warm ground.
1,200 m LRF in the lens
The laser rangefinder sits inside the objective lens rather than in a box on top, so the scope keeps a clean profile. It ranges from 10 m to 1,200 m, accurate to ±1 m.
Ballistics on screen
Range feeds the built-in ballistic calculator, and five zeroing profiles with freeze zeroing make swapping loads or rifles quick.
Sharp AMOLED picture
A 1.03-inch 2560×2560 AMOLED display, HSIS shutterless imaging and Image Pro 4.0 keep the view smooth without calibration pauses breaking your moment.
Built for big recoil
Rated to 6000 J of recoil, IP67 sealed and good from −30 °C to 55 °C. Two internal batteries plus a swappable 18650 give up to 7 hours with the LRF on, and recoil-activated recording saves every shot to 64 GB onboard.
Best for: serious long-range shooters who want the best picture going. If most of your shots are inside 200 m, the 50 mm Stellar 4.0 will do the job for less. Not sure which Stellar suits how you hunt? Ask us and we'll tell you straight.
Key specs
| Sensor | 1280×1024 VOx, 12 µm, 50 Hz |
|---|---|
| NETD | <12 mK |
| Lens | 75 mm F1.2 |
| Magnification | 3×–30× |
| Field of view | 12.1° × 9.7° (21.2 × 17 m @ 100 m) |
| Detection range | 3,600 m |
| Display | 1.03" AMOLED, 2560×2560 |
| Laser rangefinder | In-lens, 905 nm Class 1, 10–1,200 m, ±1 m |
| Ballistics | Built-in ballistic calculator |
| Eye relief / exit pupil | 55 mm / 8 mm |
| Recording | Video, photo, audio; 64 GB |
| Zeroing | 5 profiles, freeze zeroing |
| Power | 2 internal + 1 swappable 18650; up to 7 h (LRF on); USB-C |
| Mount | Standard 30 mm, 41 mm centre height |
| Protection | IP67, −30 °C to 55 °C |
| Recoil rating | 6000 J |
| Size / weight | 445.7 × 93.5 × 78.7 mm; 1075 g with external battery |
| Brand | HIKMICRO |
|---|---|
| Sensor resolution | 1280×1024 |
| Pixel pitch (µm) | 12 |
| NETD (mK) | <12 |
| Lens (mm) | 75 |
| Aperture | F1.2 |
| Magnification | 3×–30× |
| Field of view | 12.1° × 9.7° |
| Display | AMOLED 2560×2560 |
| Refresh rate (Hz) | 50 |
| Detection range (m) | 3600 |
| Rangefinder | Built-in laser, 1,200 m |
| Ballistic calculator | Yes |
| Battery life (hrs) | 7 |
| Battery type | Internal Li-ion + swappable 18650 |
| External battery | USB-C (5 V / 2 A, QC3.0) |
| Weight (g) | 1075 |
| Waterproof (IP) | IP67 |
| Recoil rating | 6000 J |
| Recording | Photo and video, 64 GB |
| Mount | 30 mm rings |
| Operating temperature | -30 to +55 °C |
