Roll over to zoom
Real thermal footage of warthogs, shown in each palette. Palettes only change the colours; the heat data is the same.
- Across the circle at this distance
- Magnification
- What you can tell
The view starts at this unit's own magnification. The further away the animal, and the wider the field of view, the less detail the sensor picks up, until you can tell something warm is there but not what it is. Zooming in makes it bigger, not sharper.
- Magnification
- Sharpness
Digital zoom crops the sensor image and enlarges what is left. It adds no detail, so each step makes the picture bigger but softer.
Example image only. Not filmed through this product. Pig and deer stills supplied by HIKMICRO and Nocpix; fox and rabbit are thermal-style images we made from photos by A. Omer Karamollaoglu (CC BY 2.0) and Alexis Lours (CC BY 4.0). Field of view and zoom are simulated from this unit's 640×512 sensor and 35 mm lens, 2.2× base magnification and 1600×1200 screen. Real results change with weather, display and settings.

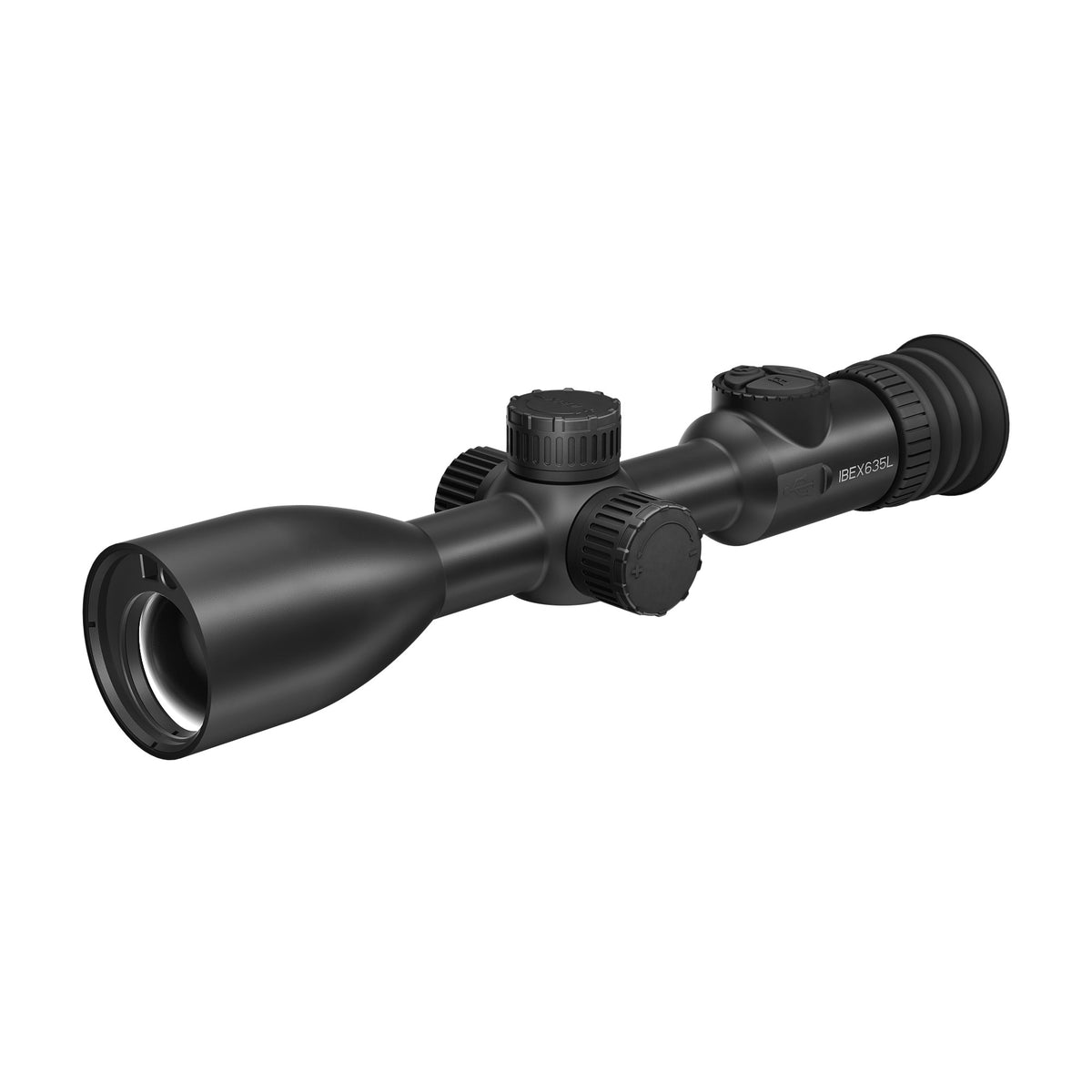

Compare with other thermals side by sideIBEX 635L LRF Thermal Scope
Be the first to review · Ask a question SKU: OPTT-IBEX635L- Warranty fault in the first 30 days? We replace the unit.
- We lower the price in the first 30 days? You get the difference as store credit.
Thanks — we'll email you when it's back.
A 640×512 thermal scope with the laser rangefinder built in. You get a wide, detailed picture and a distance reading in one unit, so you're not juggling a second device in the dark.
Here's what that means in the paddock. The 640×512 sensor and 35 mm lens give a 12.5° × 10° field of view, about 22 m wide at 100 m, so you cover more ground without panning as much. The laser rangefinder reads out to 1,000 m and works with the built-in ballistic calculator, so you range the animal and set your hold in one go.
It runs on a replaceable 18650 battery, good for about 6 hours each, so you can swap one in the field and keep going. It's sealed to IP67, rated for recoil up to 6,000 J, and sits in standard 30 mm rings.
Best for: foxes, rabbits, pigs and deer inside about 150 m, where the wide view and built-in rangefinder do the work. Not for: anyone chasing tight, long-reach magnification. It's 2.2× optical with 1–4× digital zoom (up to 8.8× in all), built for a wide, quick pickup. Not sure if it suits how you hunt? Tell us where and what you're after and we'll point you to the right scope.
Key features
- 640×512 uncooled sensor, 12 µm pixel pitch, NETD <18 mK, 50 Hz
- 35 mm F0.8 lens with a 12.5° × 10° field of view
- Built-in laser rangefinder to 1,000 m, plus a ballistic calculator
- 0.5" AMOLED display, 1600×1200
- Central turret focus
- Six zeroing profiles, freeze zeroing, and eight reticles in five colours
- Recoil Activated Video, 64 GB of memory and audio recording
- ThermTec AutoSight System, which helps you keep track of the target after the shot
- Replaceable 18650 batteries, up to 6 hours each
- IP67, rated for 6,000 J of recoil, fits standard 30 mm rings
- Hotspot and ThermTec Outdoor app for live view, file transfer and firmware updates
Key specs
- Sensor: 640×512, 12 µm, NETD <18 mK, 50 Hz
- Lens: 35 mm F0.8, 12.5° × 10° field of view
- Magnification: 2.2× optical, 1–4× digital (up to 8.8×)
- Rangefinder: built-in laser up to 1,000 m, with ballistic calculator
- Display: 0.5" AMOLED, 1600×1200
- Power and build: replaceable 18650 battery (about 6 h each), IP67, 6,000 J recoil rating, about 770 g
ThermTec rates detection at up to 1,800 m for a man-sized target. That's seeing something warm, not identifying it. Real-world results depend on conditions and the target.
In the box (per ThermTec): scope, 2 × 18650 batteries, charger, USB cable, user manual, lens cloth and service and support card.
| Brand | ThermTec |
|---|---|
| Sensor resolution | 640×512 |
| Pixel pitch (µm) | 12 |
| NETD (mK) | <18 |
| Lens (mm) | 35 |
| Aperture | F0.8 |
| Magnification | 2.2–8.8× |
| Field of view | 12.5° × 10° |
| Display | AMOLED 1600×1200 |
| Refresh rate (Hz) | 50 |
| Detection range (m) | 1800 |
| Rangefinder | Built-in laser, 1000 m |
| Ballistic calculator | Yes |
| Battery life (hrs) | 6 |
| Battery type | 1 × 18650 (replaceable) |
| Weight (g) | 770 |
| Waterproof (IP) | IP67 |
| Recoil rating | 6000 J |
| Wi-Fi / app | Hotspot and ThermTec Outdoor app |
| Recording | Photo and video, 64 GB |
| Mount | 30 mm rings |
| Operating temperature | -20 to +50 °C |
Refund policy
Returns Policy
We want you to be completely satisfied with your purchase. If for any reason you're not, we're here to help! Please review our return policy below:
Return Eligibility:
● Returns: You may return new, unopened items within 30 days of purchase or delivery for store credit or an exchange for another product, except for the exclusions listed below.
● Change of Mind purchases are not eligible for return, only exchange or store credit.
● Exclusions: Certain items are not eligible for returns AND exchanges, including:
○ Ammunition
○ Primers/Explosives
○ Rifles
○ Clearance items
Return Process:
1. To initiate an online return, please follow the instructions provided on our return request page: Request a Return
2. For in-store returns, please contact Hunt The Night/Pakenham Outdoors directly at 1300 486 444 and select the appropriate option for your return.
3. Condition of Items: Items must be unused, in their original packaging and product tags must be present and in original condition to be eligible for return. If the item is opened or used, it may not be eligible for a refund or exchange. (Conditions are subject to staff discretion)
Return Due to Our Error:
● If the return is a result of our error (e.g., wrong item shipped, defective product), we will provide you with a return shipping label at no cost to you.
● In this case, you will also have the option to receive a full refund.
Refunds and Store Credit:
● For eligible returns, we offer either store credit or an exchange for another product.
● Refunds will only be issued at the discretion of staff and/or if the return is due to an error on our part (as mentioned above)
How to Contact Us:
For any questions or concerns, please reach out to our customer service team via our website or call 1300 486 444 for in-store return assistance.
Layby Purchases
Layby purchases must be paid off in full within 8 weeks of paying the deposit. You can pay off the balance in part-payments of any amount, at any time, within those 8 weeks. A 7-day grace period applies after the due date, with no late fees. If you cancel, or the layby is not paid off by the due date (plus the 7-day grace period), we keep the deposit or 20% of the total order value, whichever is more, out of the payments you have already made. We will not seek any further amount, and anything you have paid above that will be refunded.
Warranty Policy
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law (ACL).
If a product is returned under a warranty claim and is found to have no fault, the purchaser will be responsible for all associated costs, including inspection, handling, and return postage.
We appreciate your understanding and look forward to seeing you again!
How far will it see?
Spec sheet
Rabbits, pigs, deer, foxes
Not enough detail at long range
Range & build
Full technical specs
Why you'd pick the IBEX 635L
A wide 640×512 picture, a laser rangefinder and a ballistic calculator in one scope-style unit. Here's what each bit does in the field.

01 · The picture
A wide view of the paddock
The 640×512 sensor behind a 35 mm F0.8 lens gives a 12.5° × 10° view, about 22 m wide at 100 m. The IBEX 335L, with the same lens and a 384×288 sensor, covers about 13 m at 100 m (ThermTec manual). That's less panning to find the animal. ThermTec's AI calibration also cuts how often the shutter clicks, so the picture freezes less.
- 640×512
- 12 µm pitch
- NETD <18 mK
- 50 Hz

02 · Rangefinder and ballistics
Range it, then hold on it
A laser rangefinder to 1,000 m is built into the tube, so there's no second unit to carry or mount. Short-press the LRF button and the distance is on the screen. Zero the scope, switch on the ballistic calculator, and enter your scope height, bullet weight, muzzle velocity, BC and conditions to get an aiming point. It's only as good as the numbers you give it, so check it on a real shot.
- LRF to 1,000 m
- Ballistic calculator
- Needs a zero first

03 · Zero and controls
Zero it once, keep it
Six zeroing profiles (A to F) store the distance, bullet type and crosshair position, so one scope can serve a few rifles or loads. Freeze zeroing holds the picture while you move the reticle onto the bullet hole. Pick from eight reticles in five colours. Focus is one knob in the central turret on top. Zoom is 1–4× digital on the 2.2× optical, up to 8.8× in all.
- 6 zeroing profiles
- 8 reticles
- 5 reticle colours
- 2.2–8.8×

04 · Recording and app
Records the shot for you
Recoil Activated Video records the moments before, during and after the shot, so you don't have to hit record. 64 GB of onboard memory holds photos and video, with audio if you want it. Switch on the scope's hotspot, connect the ThermTec Outdoor app, and you can watch live, copy files to your phone and update the firmware.
- Recoil Activated Video
- 64 GB
- Hotspot + app

05 · Build and power
Built for recoil and weather
Rated for up to 6,000 J of recoil on a rifled weapon and sealed to IP67. It runs from −20 to +50 °C, weighs about 770 g and measures 342 × 86 × 73 mm. It sits in standard 30 mm rings. Power is a replaceable 18650, up to 6 hours each. Two come in the box with a charger, so you can swap one in the field.
- IP67
- 6,000 J
- 770 g
- 6 h per battery
What it's good for
A wide view and a built-in rangefinder make this a close-to-mid-range scope for foxes, rabbits, pigs and deer. That's where it earns its keep.
Good for
Foxes
A fox is small and quick, and the wide 12.5° view helps you find it without hunting around the screen. Range it with the built-in laser, then hold using the ballistic calculator. Inside about 150 m you'll know a fox when you see one.
Good for
Rabbits
Rabbits show up as small warm dots well out from you. ThermTec's own chart puts rabbit-height detection at about 300 m, but you'll want them a lot closer to be sure of what you're looking at.
Good for
Pigs
Pigs are bigger and easier to pick up. ThermTec's chart gives about 700 m for boar-height detection (0.7 m tall). That's spotting a warm shape, not identifying it. Inside about 150 m you get a proper look at the animal.
Good for
Deer
Deer on the edge of timber or paddock suit the wide view. Range the animal, and make sure you've identified it and know what's behind it before you shoot.
How far ThermTec says it detects
From the ThermTec IBEX series manual, 35 mm lens. Detection means you can see something warm is there, not what it is. Real results depend on weather and the target.
Where it's not the pick
Shots past about 150 m where you need to be certain what you're looking at. At 2.2× optical with 1–4× digital zoom, it's built for a wide, quick pickup, not long reach.
If that's how you hunt, tell us where and what you shoot and we'll point you to a bigger lens. Call 1300 486 444.
What's in the box
- Thermal scope×1
- 18650 battery×2
- Charger×1
- USB cable×1
- User manual×1
- Lens cloth×1
- Service and support card×1
As listed by ThermTec.
Downloads and app
Both files are hosted by ThermTec. The manual covers the whole IBEX series and its spec pages show the 335L, so use this page for 635L figures.
The ThermTec Outdoor app is on the Apple App Store and Google Play, and connects over the scope's hotspot.
Questions we get
How far will it see?
ThermTec rates detection at up to 1,800 m for a man-sized target. On its chart, boar-height is about 700 m and rabbit-height about 300 m. That's seeing something warm, not knowing what it is. For a confident ID with this 35 mm lens, think inside about 150 m.
Does the rangefinder work with the ballistic calculator?
Yes. The ballistic calculator uses the laser range, and the scope needs zeroing first. With it switched on, the scope goes into single-ranging mode. You enter scope height, bullet weight, muzzle velocity, BC, wind and temperature.
Will it handle my rifle's recoil?
ThermTec rates it for up to 6,000 J of recoil on a rifled weapon, and it fits standard 30 mm rings. It doesn't publish a calibre list, so if yours is a heavy hitter, call us on 1300 486 444 before you order.
How long do the batteries last?
Up to 6 hours per 18650, according to ThermTec. Two come in the box with a charger, and the scope can also charge over USB-C. Real run time depends on how you use it and the temperature.
Can I use it with my phone?
Yes. Switch on the scope's hotspot, join it from your phone and open the ThermTec Outdoor app. You can watch live, copy photos and video across, and update the firmware.
