Clip On Modular Adapter Clamp
4.6 · 11 reviews · Size & fit questions SKU: MAR-30Thanks — we'll email you when it's back.
Confirm your email
Your request is saved. Check your inbox for a six-digit code to activate this alert.
Enter the six-digit code from the email we sent you.
You’re on the list
You’re signed up for stock updates on this item. You can change or stop this alert any time.
Alert stopped
This stock alert has been stopped.
Manage this alert
“Stop all my alerts” ends every stock alert for your email in this store.

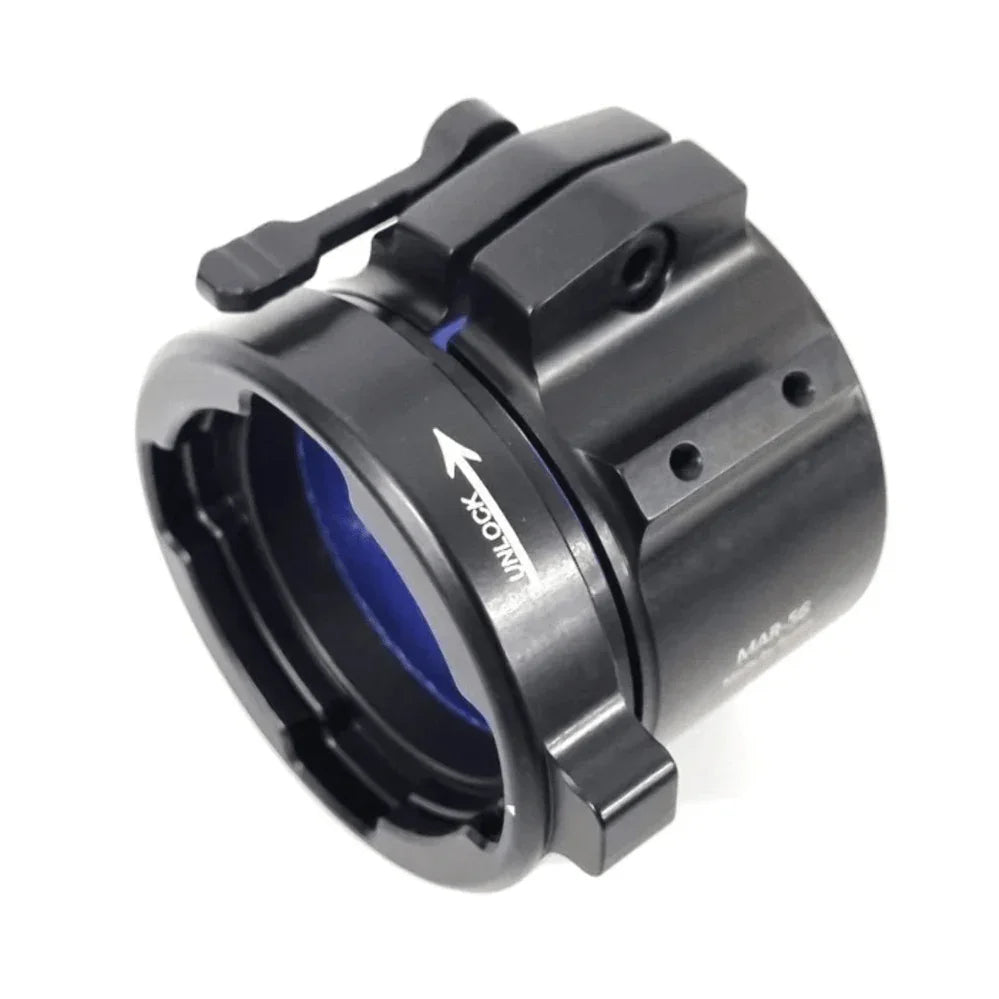

Introducing the Rusan Modular Adapter Clamp for Clip-On Thermal Attachments, the ultimate solution for seamless scope switching! With its innovative quick detach system, you can effortlessly transition between scopes in seconds while keeping the Modular Adapter securely attached.
Designed for maximum convenience, our adapter features a silent clip-on mechanism with internal rubber-based tape, ensuring silent mounting for stealthy hunting experiences.
Pair it with our compatible Modular Attachments for a perfect fit with your thermal clip-on device. Available for popular brands like InfiRay, Pulsar Krypton, Pulsar Forward NV, Guide, Burris, and Leica Calonox, the Rusan Modular Adapter Clamp guarantees unparalleled performance and versatility.
Refund policy
Returns Policy
We want you to be completely satisfied with your purchase. If for any reason you're not, we're here to help! Please review our return policy below:
Return Eligibility:
● Returns: You may return new, unopened items within 30 days of purchase or delivery for store credit or an exchange for another product, except for the exclusions listed below.
● Change of Mind purchases are not eligible for return, only exchange or store credit.
● Exclusions: Certain items are not eligible for returns AND exchanges, including:
○ Ammunition
○ Primers/Explosives
○ Rifles
○ Clearance items
Return Process:
1. To initiate an online return, please follow the instructions provided on our return request page: Request a Return
2. For in-store returns, please contact Hunt The Night/Pakenham Outdoors directly at 1300 486 444 and select the appropriate option for your return.
3. Condition of Items: Items must be unused, in their original packaging and product tags must be present and in original condition to be eligible for return. If the item is opened or used, it may not be eligible for a refund or exchange. (Conditions are subject to staff discretion)
Return Due to Our Error:
● If the return is a result of our error (e.g., wrong item shipped, defective product), we will provide you with a return shipping label at no cost to you.
● In this case, you will also have the option to receive a full refund.
Refunds and Store Credit:
● For eligible returns, we offer either store credit or an exchange for another product.
● Refunds will only be issued at the discretion of staff and/or if the return is due to an error on our part (as mentioned above)
How to Contact Us:
For any questions or concerns, please reach out to our customer service team via our website or call 1300 486 444 for in-store return assistance.
Layby Purchases
Layby Purchases must be paid off with 8 weeks or purchase. In the event that layby purchases are not paid off within 8 weeks a 20% restocking fee will apply. Any additional payments beyond the 20% restocking fee will be refunded.
Warranty Policy
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law (ACL).
If a product is returned under a warranty claim and is found to have no fault, the purchaser will be responsible for all associated costs, including inspection, handling, and return postage.
We appreciate your understanding and look forward to seeing you again!
Assembly guide

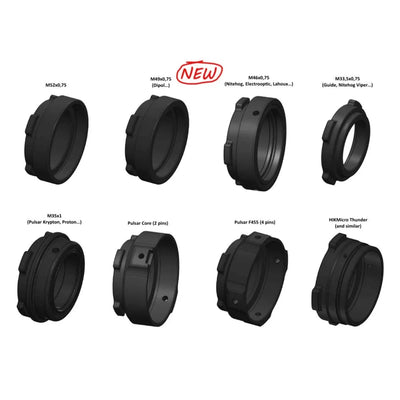

- The partsNocpix MATE clip-on, Rusan MCR-M52 modular connector, Rusan MAR modular clamp sized to the scope, and an Arken SH4 4-16x50 GEN2 riflescope.SH4 objective Ø ≈59 mm, read off Arken's product render: confirm with calipers before ordering the clamp
- Zero the day scopeMake sure the day scope is zeroed before you fit the MATE.
- Pick the clamp sizeMeasure the outer diameter of the scope's objective and choose the Rusan MAR clamp in that size (Rusan makes 58, 58.4 and 59 mm).
- Fit the connectorScrew the MCR-M52 connector onto the MATE's M52×0.75 thread at the eyepiece end.Role of the MATE's adapter locked ring, and MCR-M52 vs MCR-M52P, to confirm
- Fit the clampSlide the clamp over the objective bell and close the quick-release lever.Clamp seating position on the bell to confirm
- Lock it onLine up the arrows on the connector and clamp, push the MATE fully in, then turn the clamp's front ring against its UNLOCK arrow to lock. The MATE itself doesn't rotate.
- Set up and zeroCheck the Eyepiece menu is on Clip on mode (the factory default), then zero the MATE in profile 1 to 8 in the Zeroing menu.
- The partsHIKMICRO Thunder TH35C 3.0 clip-on, Rusan MCR-M52 modular connector, Rusan MAR modular clamp sized to the scope, and an Arken SH4 4-16x50 GEN2 riflescope.SH4 objective Ø ≈59 mm, read off Arken's product render: confirm with calipers before ordering the clamp
- Zero the day scopeMake sure the day scope is zeroed before you fit the Thunder. HIKMICRO rates this model for day scopes of 1-12×.
- Pick the clamp sizeMeasure the outer diameter of the scope's objective and choose the Rusan MAR clamp in that size (Rusan makes 58, 58.4 and 59 mm).
- Fit the connectorScrew the MCR-M52 connector clockwise onto the Thunder's M52×0.75 thread, then tighten the fixing ring with the wrench that comes with the Thunder.
- Fit the clampSlide the clamp over the objective bell and close the quick-release lever.Clamp seating position on the bell to confirm
- Lock it onLine up the arrows on the connector and clamp, push the Thunder fully in, then turn the clamp's front ring against its UNLOCK arrow to lock. The Thunder itself doesn't rotate.
- Set up and zeroSet the eyepiece type to Clip-On (Menu › Advanced Settings, or double-press the Mode key), then use Calibrate Image to line the thermal image up with the day-scope reticle.
- The partsHIKMICRO Thunder TQ35CL 3.0 clip-on, Rusan MCR-M52 modular connector, Rusan MAR modular clamp sized to the scope, and an Arken SH4 4-16x50 GEN2 riflescope.SH4 objective Ø ≈59 mm, read off Arken's product render: confirm with calipers before ordering the clamp
- Zero the day scopeMake sure the day scope is zeroed before you fit the Thunder. HIKMICRO rates this model for day scopes of 1-15×.
- Pick the clamp sizeMeasure the outer diameter of the scope's objective and choose the Rusan MAR clamp in that size (Rusan makes 58, 58.4 and 59 mm).
- Fit the connectorScrew the MCR-M52 connector clockwise onto the Thunder's M52×0.75 thread, then tighten the fixing ring with the wrench that comes with the Thunder.
- Fit the clampSlide the clamp over the objective bell and close the quick-release lever.Clamp seating position on the bell to confirm
- Lock it onLine up the arrows on the connector and clamp, push the Thunder fully in, then turn the clamp's front ring against its UNLOCK arrow to lock. The Thunder itself doesn't rotate.
- Set up and zeroSet the eyepiece type to Clip-On (Menu › Advanced Settings, or double-press the Mode key), then use Calibrate Image to line the thermal image up with the day-scope reticle.
- The partsHIKMICRO Thunder TQ50CL 3.0 clip-on, Rusan MCR-M52 modular connector, Rusan MAR modular clamp sized to the scope, and an Arken SH4 4-16x50 GEN2 riflescope.SH4 objective Ø ≈59 mm, read off Arken's product render: confirm with calipers before ordering the clamp
- Zero the day scopeMake sure the day scope is zeroed before you fit the Thunder. HIKMICRO rates this model for day scopes of 1-15×.
- Pick the clamp sizeMeasure the outer diameter of the scope's objective and choose the Rusan MAR clamp in that size (Rusan makes 58, 58.4 and 59 mm).
- Fit the connectorScrew the MCR-M52 connector clockwise onto the Thunder's M52×0.75 thread, then tighten the fixing ring with the wrench that comes with the Thunder.
- Fit the clampSlide the clamp over the objective bell and close the quick-release lever.Clamp seating position on the bell to confirm
- Lock it onLine up the arrows on the connector and clamp, push the Thunder fully in, then turn the clamp's front ring against its UNLOCK arrow to lock. The Thunder itself doesn't rotate.
- Set up and zeroSet the eyepiece type to Clip-On (Menu › Advanced Settings, or double-press the Mode key), then use Calibrate Image to line the thermal image up with the day-scope reticle.
- The partsThermTec Hunt 650 Pro clip-on, Rusan MCR-M52 modular connector, Rusan MAR modular clamp sized to the scope, and an Arken SH4 4-16x50 GEN2 riflescope.SH4 objective Ø ≈59 mm, read off Arken's product render: confirm with calipers before ordering the clamp
- Zero the day scopeMake sure the day scope is zeroed before you fit the Hunt. ThermTec rates this model for day scopes of 1-16×.
- Pick the clamp sizeMeasure the outer diameter of the scope's objective and choose the Rusan MAR clamp in that size (Rusan makes 58, 58.4 and 59 mm).
- Fit the connectorScrew the MCR-M52 connector onto the Hunt's M52×0.75 thread.Whether the Hunt's eyepiece bayonet-type ring stays fitted under the Rusan connector: to confirm
- Fit the clampSlide the clamp over the objective bell and close the quick-release lever.Clamp seating position on the bell to confirm
- Lock it onLine up the arrows on the connector and clamp, push the Hunt fully in, then turn the clamp's front ring against its UNLOCK arrow to lock. The Hunt itself doesn't rotate.
- Set up and zeroCheck Menu › Eyepiece Type is on Clip-on, pick a profile in Menu › Zero Profile, then use Zeroing to shift the thermal image with + / − onto the day scope’s point of impact at 100 m.
- The partsThermTec Hunt 335 Pro clip-on, Rusan MCR-M52 modular connector, Rusan MAR modular clamp sized to the scope, and an Arken SH4 4-16x50 GEN2 riflescope.SH4 objective Ø ≈59 mm, read off Arken's product render: confirm with calipers before ordering the clamp
- Zero the day scopeMake sure the day scope is zeroed before you fit the Hunt. ThermTec rates this model for day scopes of 1-12×.
- Pick the clamp sizeMeasure the outer diameter of the scope's objective and choose the Rusan MAR clamp in that size (Rusan makes 58, 58.4 and 59 mm).
- Fit the connectorScrew the MCR-M52 connector onto the Hunt's M52×0.75 thread.Whether the Hunt's eyepiece bayonet-type ring stays fitted under the Rusan connector: to confirm
- Fit the clampSlide the clamp over the objective bell and close the quick-release lever.Clamp seating position on the bell to confirm
- Lock it onLine up the arrows on the connector and clamp, push the Hunt fully in, then turn the clamp's front ring against its UNLOCK arrow to lock. The Hunt itself doesn't rotate.
- Set up and zeroCheck Menu › Eyepiece Type is on Clip-on, pick a profile in Menu › Zero Profile, then use Zeroing to shift the thermal image with + / − onto the day scope’s point of impact at 100 m.
- The partsThermTec Hunt 650L clip-on, Rusan MCR-M52 modular connector, Rusan MAR modular clamp sized to the scope, and an Arken SH4 4-16x50 GEN2 riflescope.SH4 objective Ø ≈59 mm, read off Arken's product render: confirm with calipers before ordering the clamp
- Zero the day scopeMake sure the day scope is zeroed before you fit the Hunt. ThermTec rates this model for day scopes of 1-16×.
- Pick the clamp sizeMeasure the outer diameter of the scope's objective and choose the Rusan MAR clamp in that size (Rusan makes 58, 58.4 and 59 mm).
- Fit the connectorScrew the MCR-M52 connector onto the Hunt's M52×0.75 thread.Whether the Hunt's eyepiece bayonet-type ring stays fitted under the Rusan connector: to confirm
- Fit the clampSlide the clamp over the objective bell and close the quick-release lever.Clamp seating position on the bell to confirm
- Lock it onLine up the arrows on the connector and clamp, push the Hunt fully in, then turn the clamp's front ring against its UNLOCK arrow to lock. The Hunt itself doesn't rotate.
- Set up and zeroCheck Menu › Eyepiece Type is on Clip-on, pick a profile in Menu › Zero Profile, then use Zeroing to shift the thermal image with + / − onto the day scope’s point of impact at 100 m.
- The partsZEISS DTC 3/38 clip-on, Rusan MCR-M52 modular connector, Rusan MAR modular clamp sized to the scope, and an Arken SH4 4-16x50 GEN2 riflescope.SH4 objective Ø ≈59 mm, read off Arken's product render: confirm with calipers before ordering the clamp
- Zero the day scopeMake sure the day scope is zeroed before you fit the DTC.
- Pick the clamp sizeMeasure the outer diameter of the scope's objective and choose the Rusan MAR clamp in that size (Rusan makes 58, 58.4 and 59 mm).
- Fit the connectorTurn the DTC's lock ring clockwise, back towards the body, to expose the M52 thread. Hand-tighten the MCR-M52 connector clockwise onto the thread, then turn the lock ring counter-clockwise against the connector to lock it.Rusan's catalogue doesn't list the DTC (only retailer copy does) and ZEISS doesn't publish the thread pitch: fit to confirm
- Fit the clampSlide the clamp over the objective bell and close the quick-release lever.Clamp seating position on the bell to confirm
- Lock it onLine up the arrows on the connector and clamp, push the DTC fully in, then turn the clamp's front ring against its UNLOCK arrow to lock. The DTC itself doesn't rotate.
- Set up and zeroSwitch the DTC on and align the thermal image with the day-scope reticle.The DTC's menu path for image alignment: to confirm from the ZEISS manual
Sources
- Nocpix MATE Series User Manual: components, installation and the Eyepiece menu.
- Rusan product catalogue 02/2024: modular clamp, connector and ocular.
- HIKMICRO Thunder 3.0 user manual: M52×0.75 adapter, fixing ring, eyepiece type and Calibrate Image.
- ThermTec Hunt Pro series user manual: M52×0.75 thread, bayonet-type ring, Zero Profile and Eyepiece Type.
- ZEISS DTC 3/38 instruction manual (reproduced by Optics Trade): lock ring and adapter fitting.
- Rusan modular adapter description (Venari): push-and-twist bayonet and alignment arrows.
