Tread® All-Terrain Sat Nav
Be the first to review · Ask a question SKU: 010-02972-20Thanks — we'll email you when it's back.
Off-road navigation for the tracks, fire trails and dunes, on glove-friendly screens built for dust, water and heat.

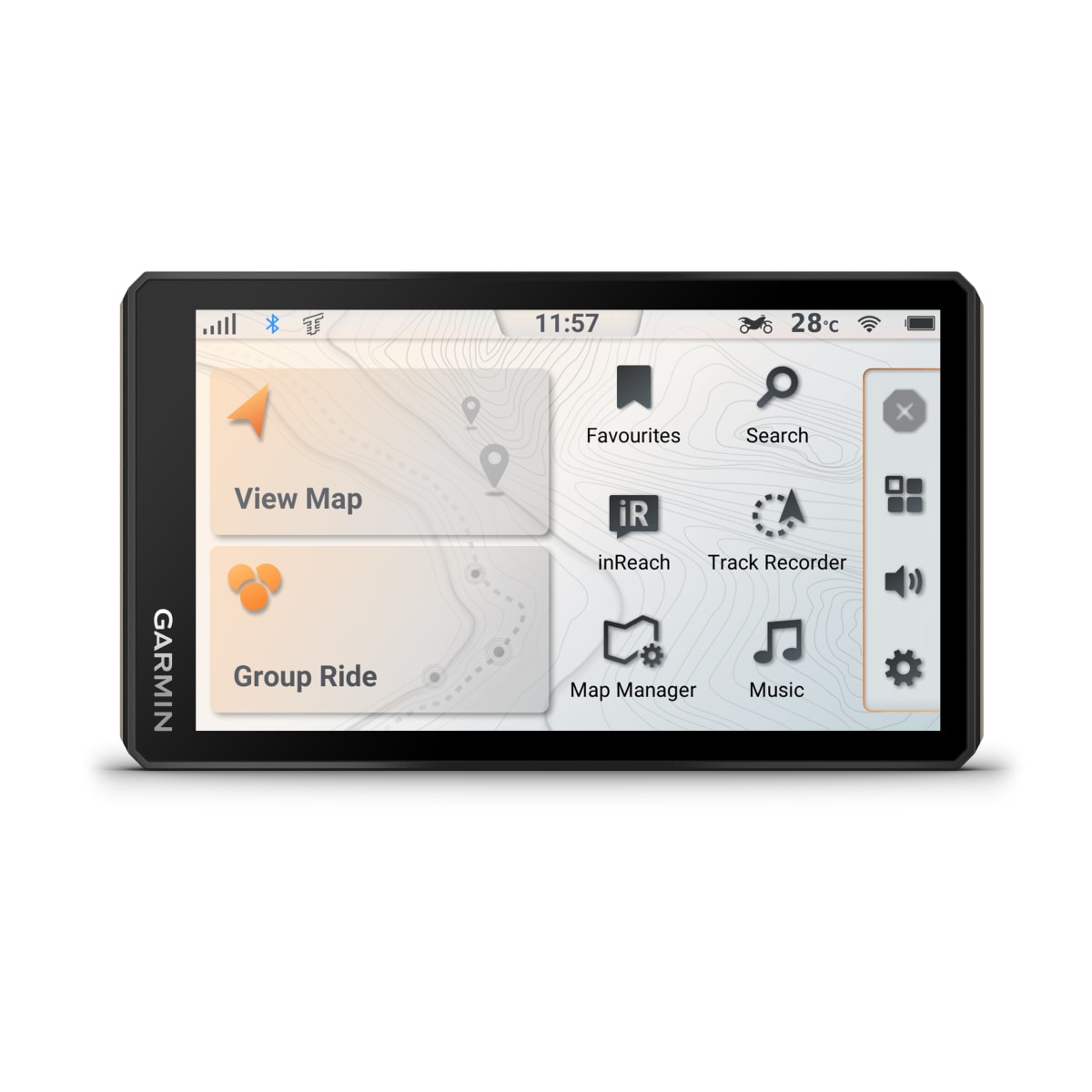

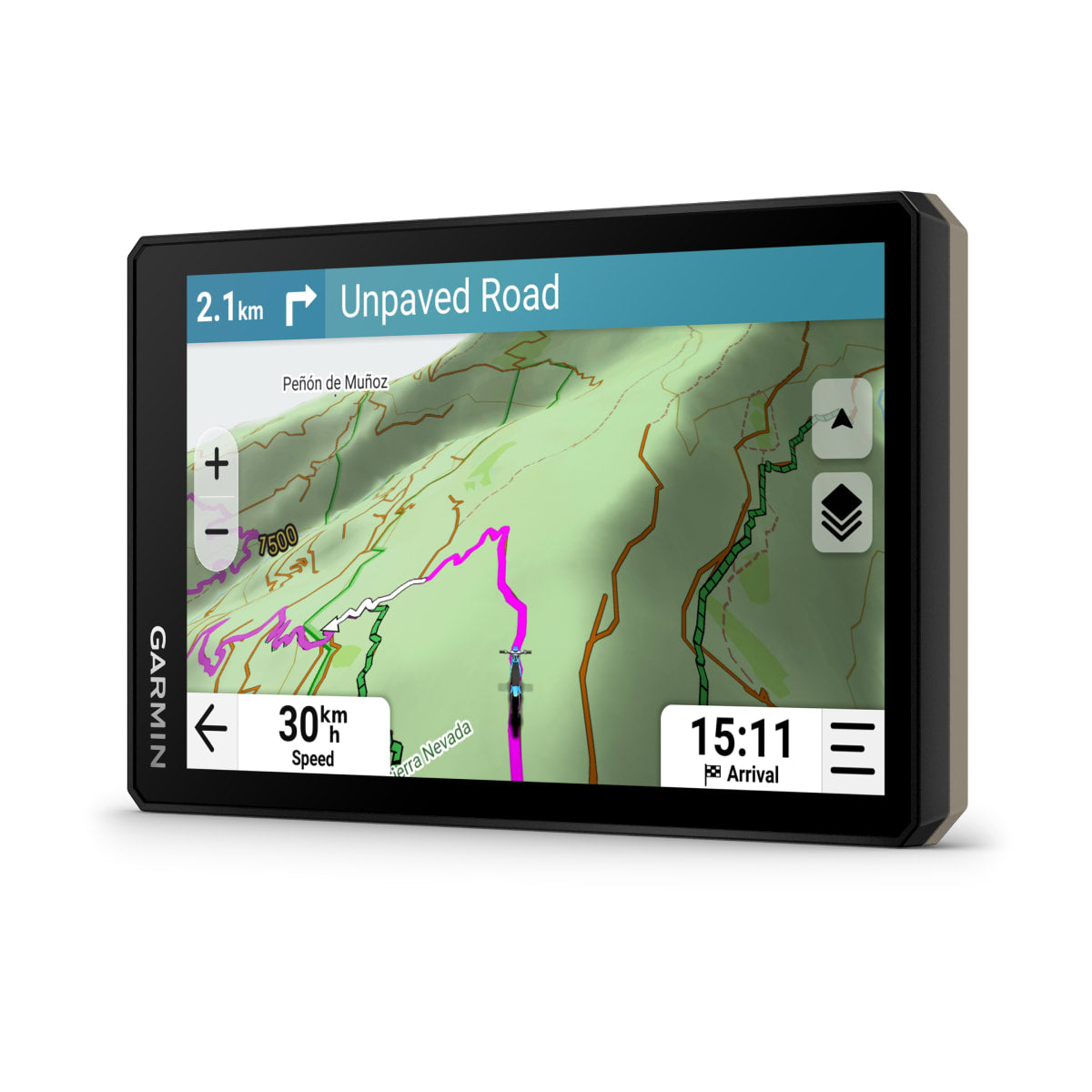

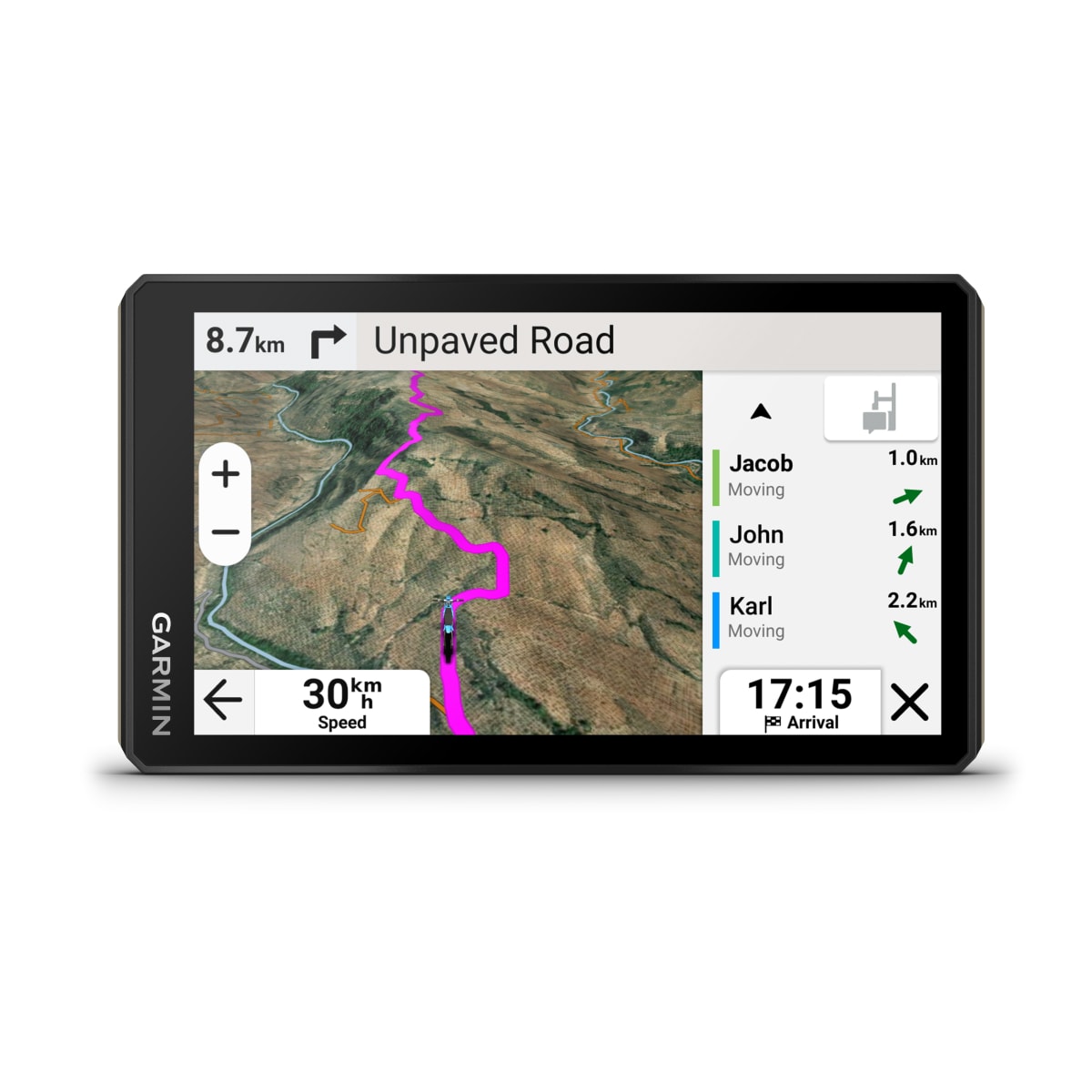

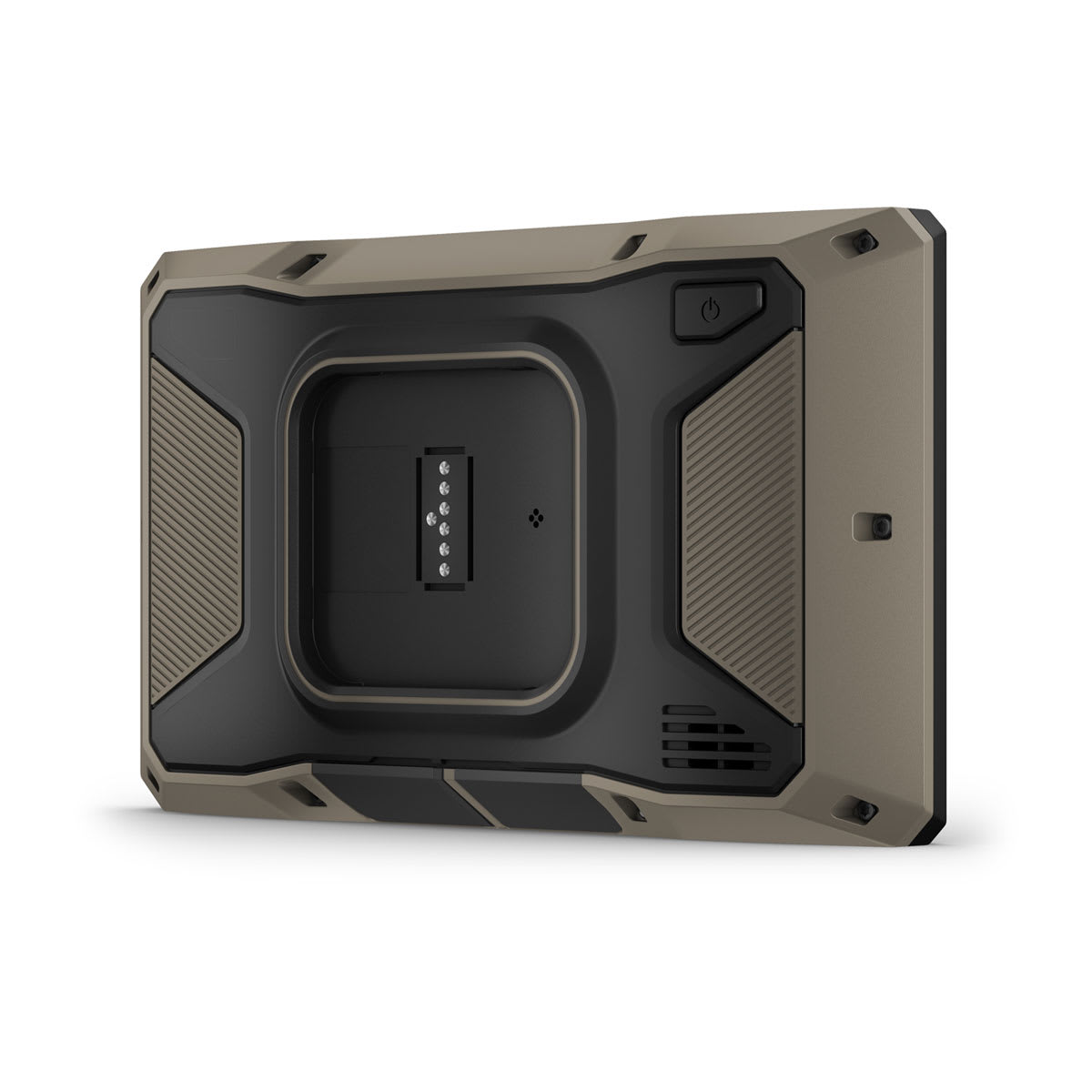

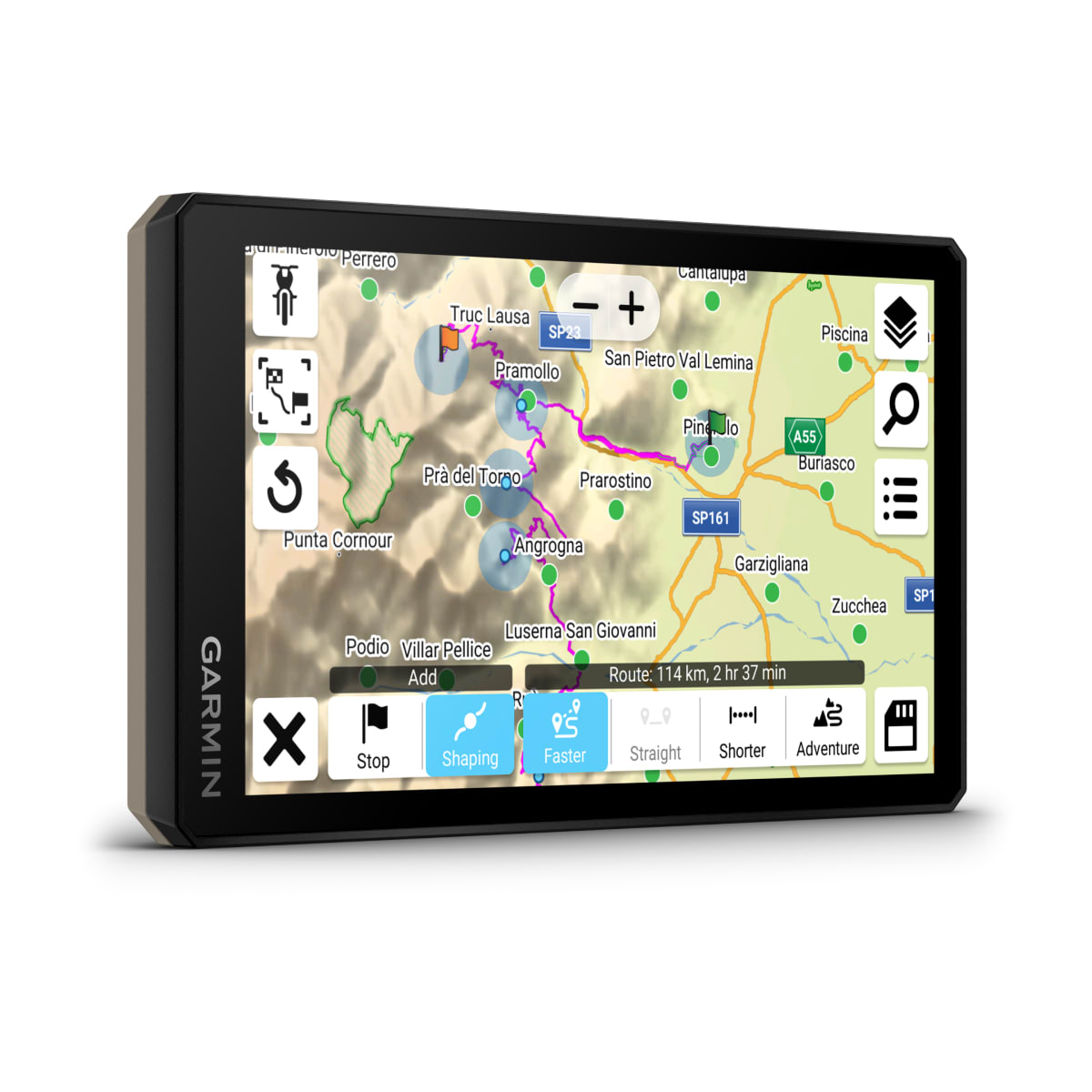

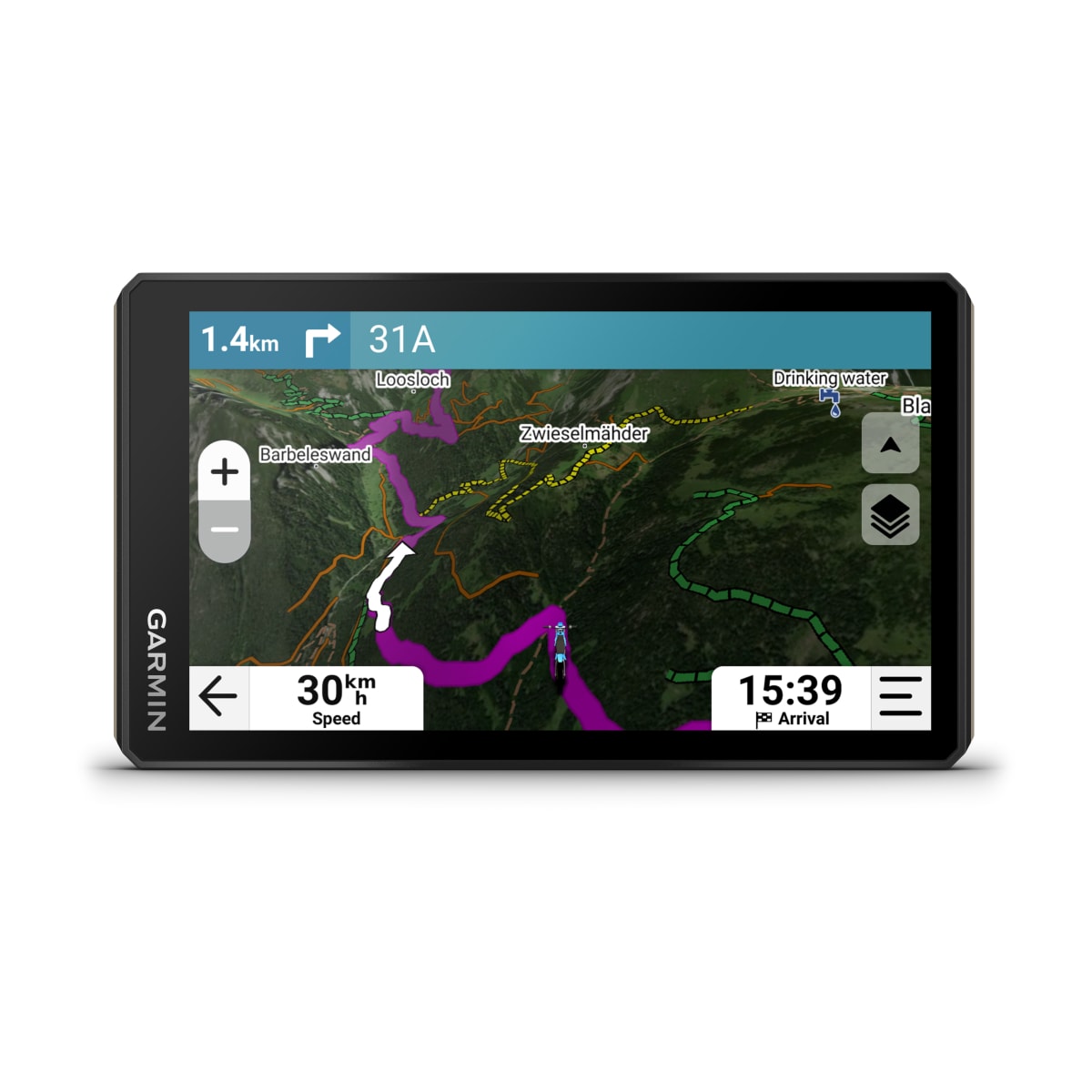

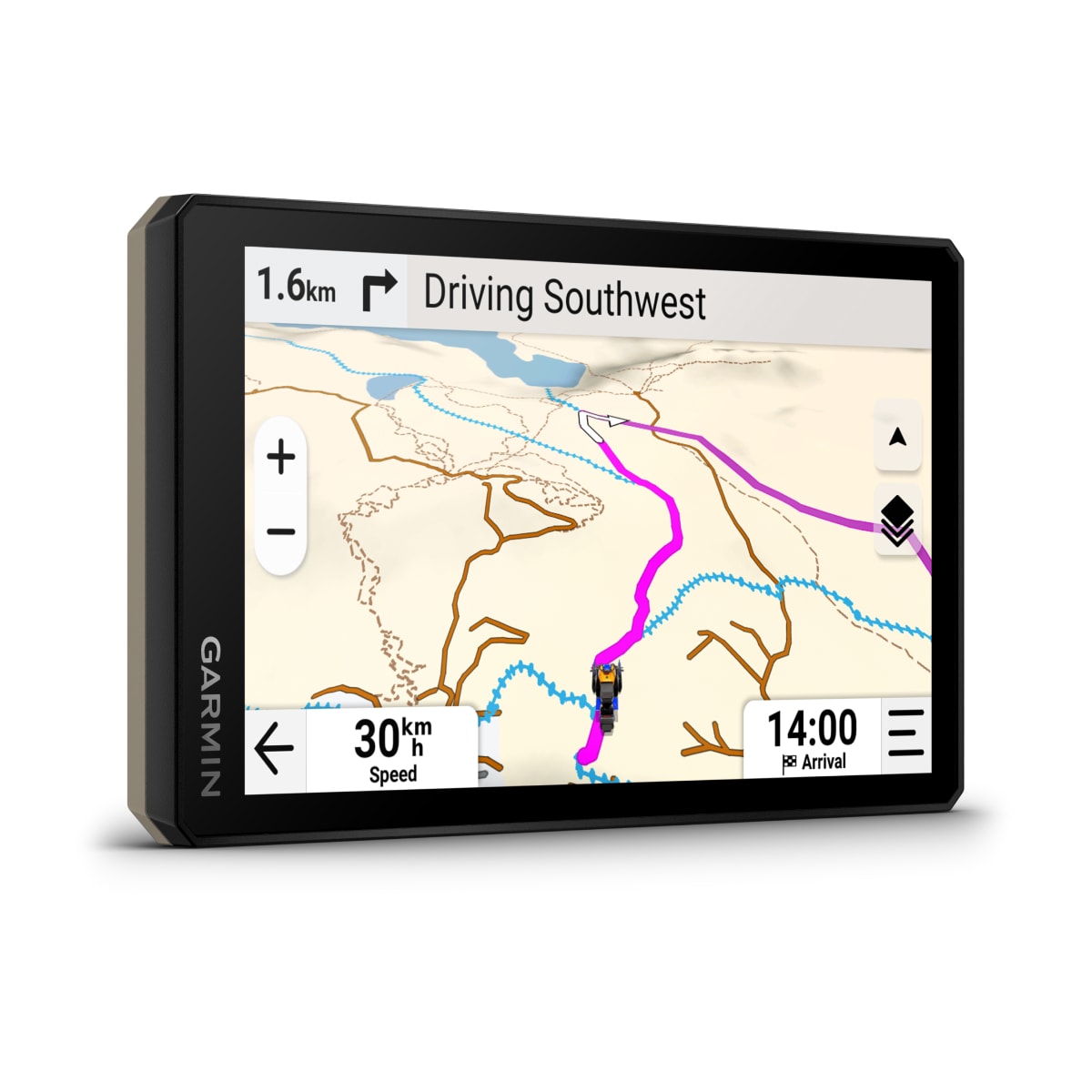

Tread is Garmin's off-road sat nav range. Tread 2 runs an ultrabright, glove-friendly 6″ touchscreen with preloaded topo maps, satellite imagery and an IP67 rating, and it supports Outdoor Maps+ (subscription required) and the Tread app for route planning.

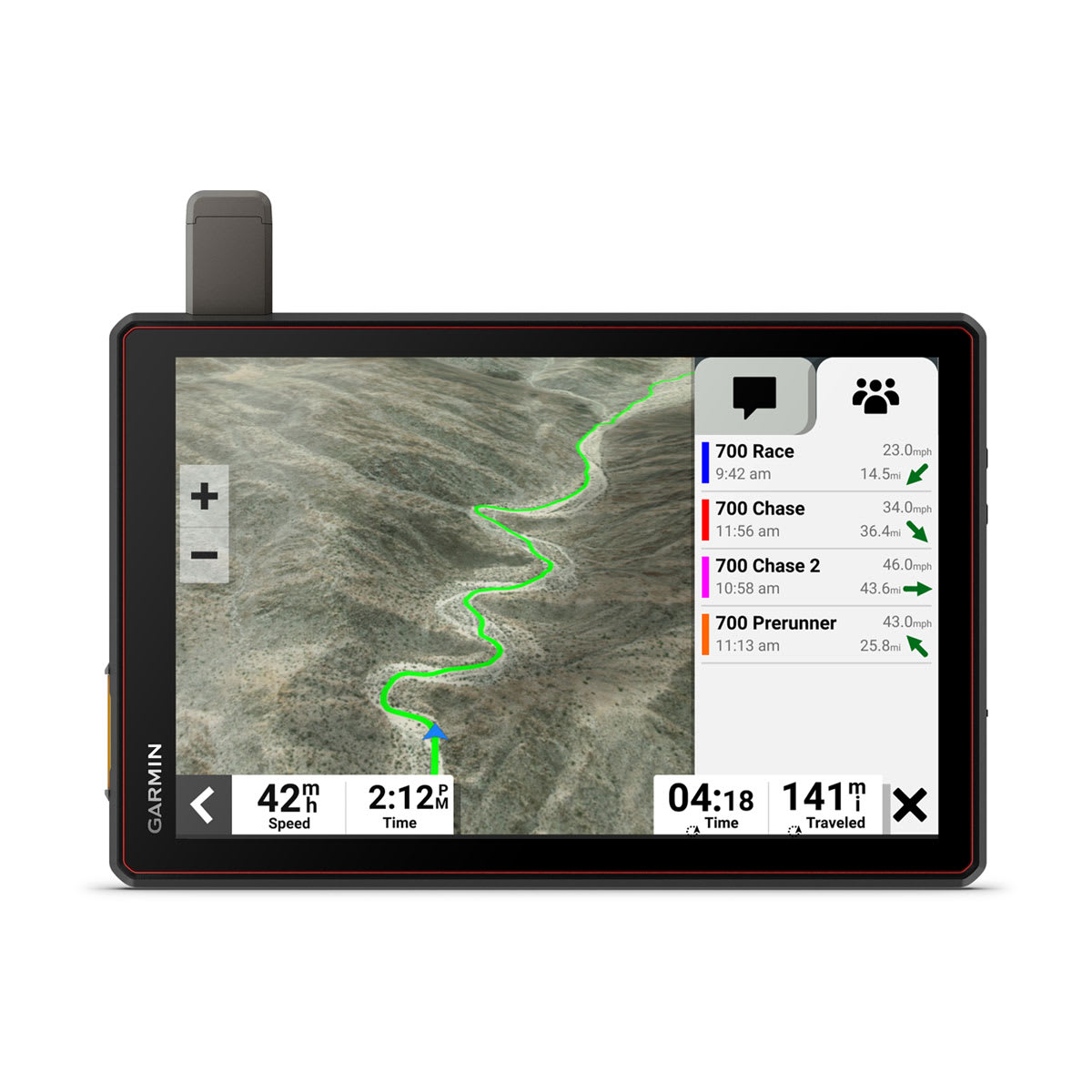

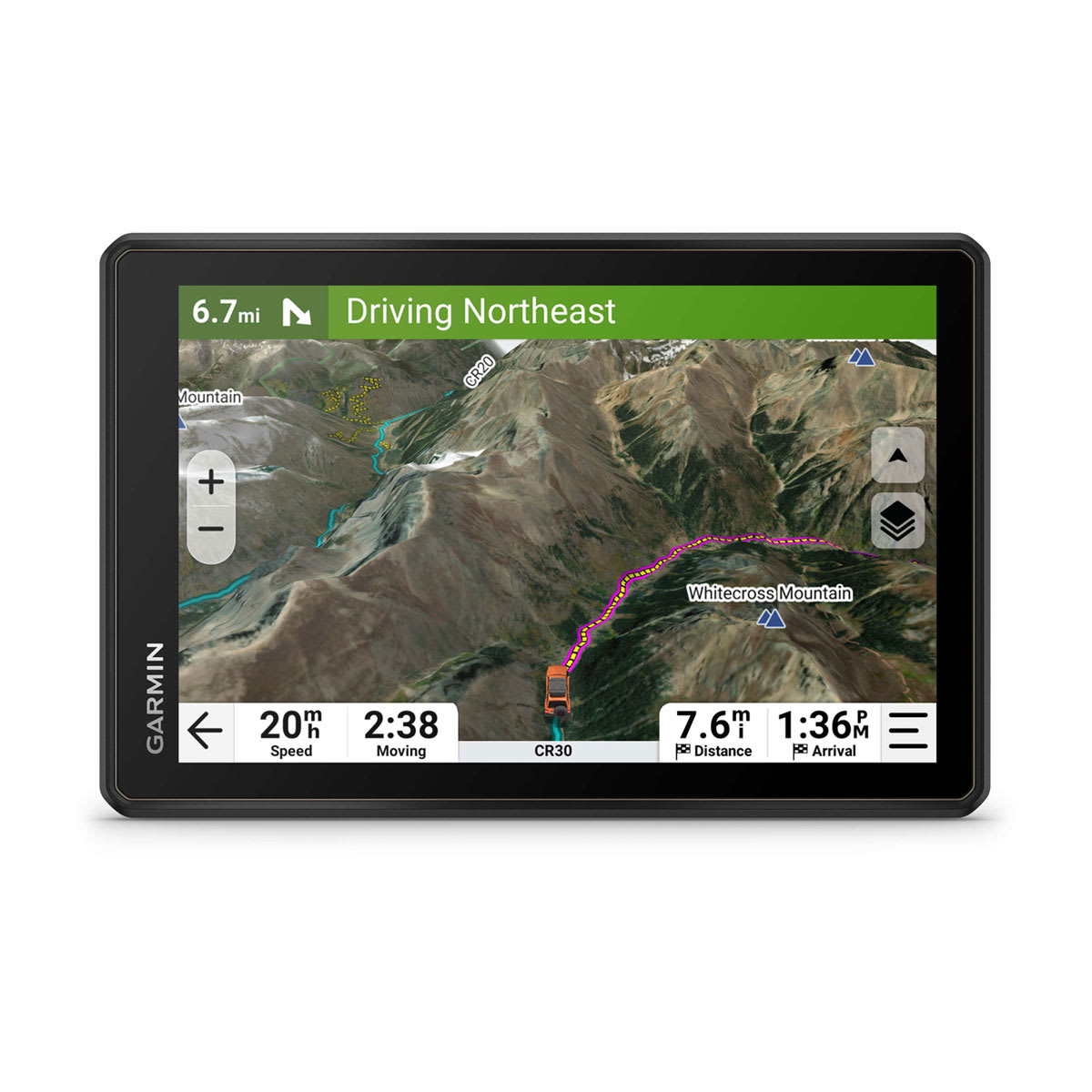

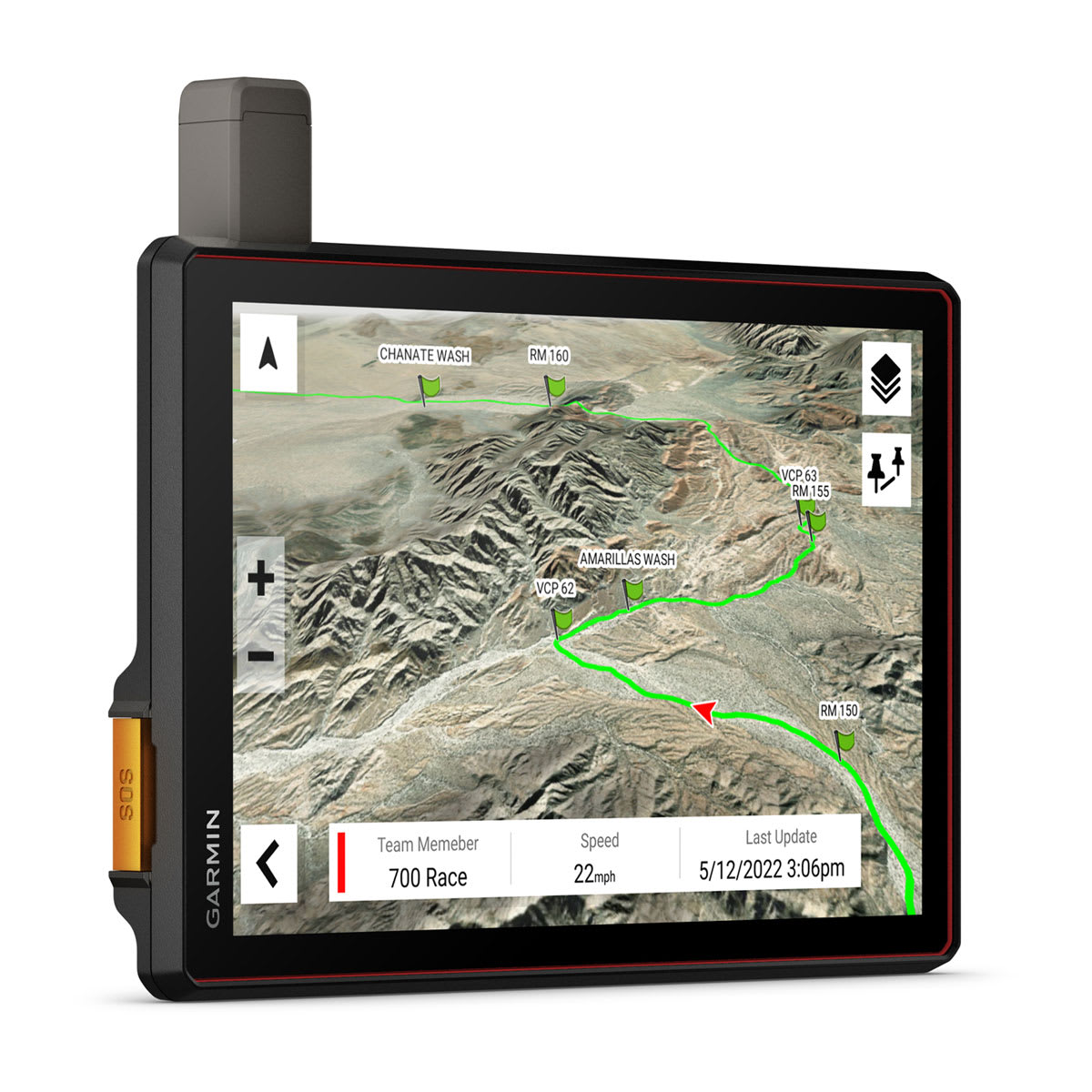

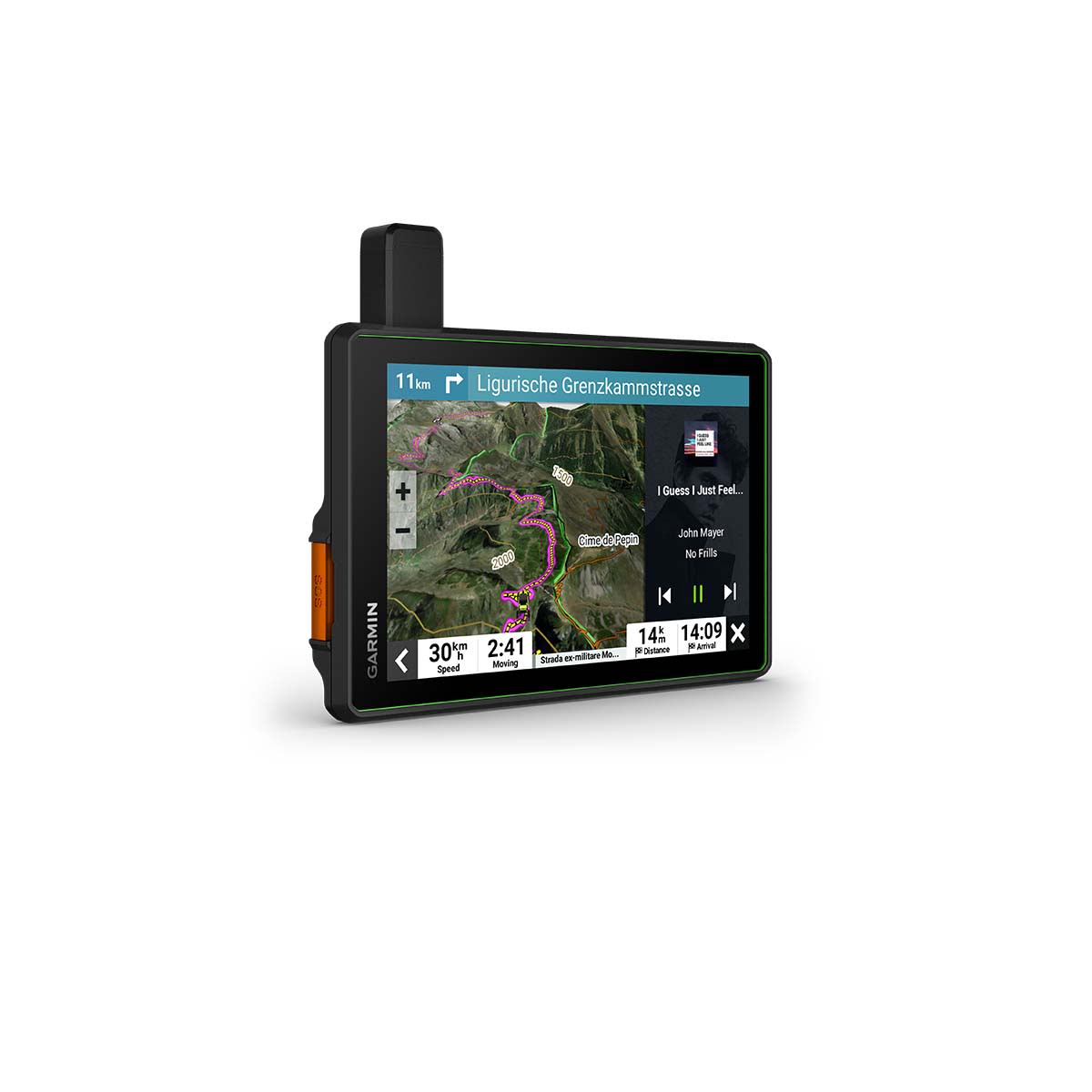

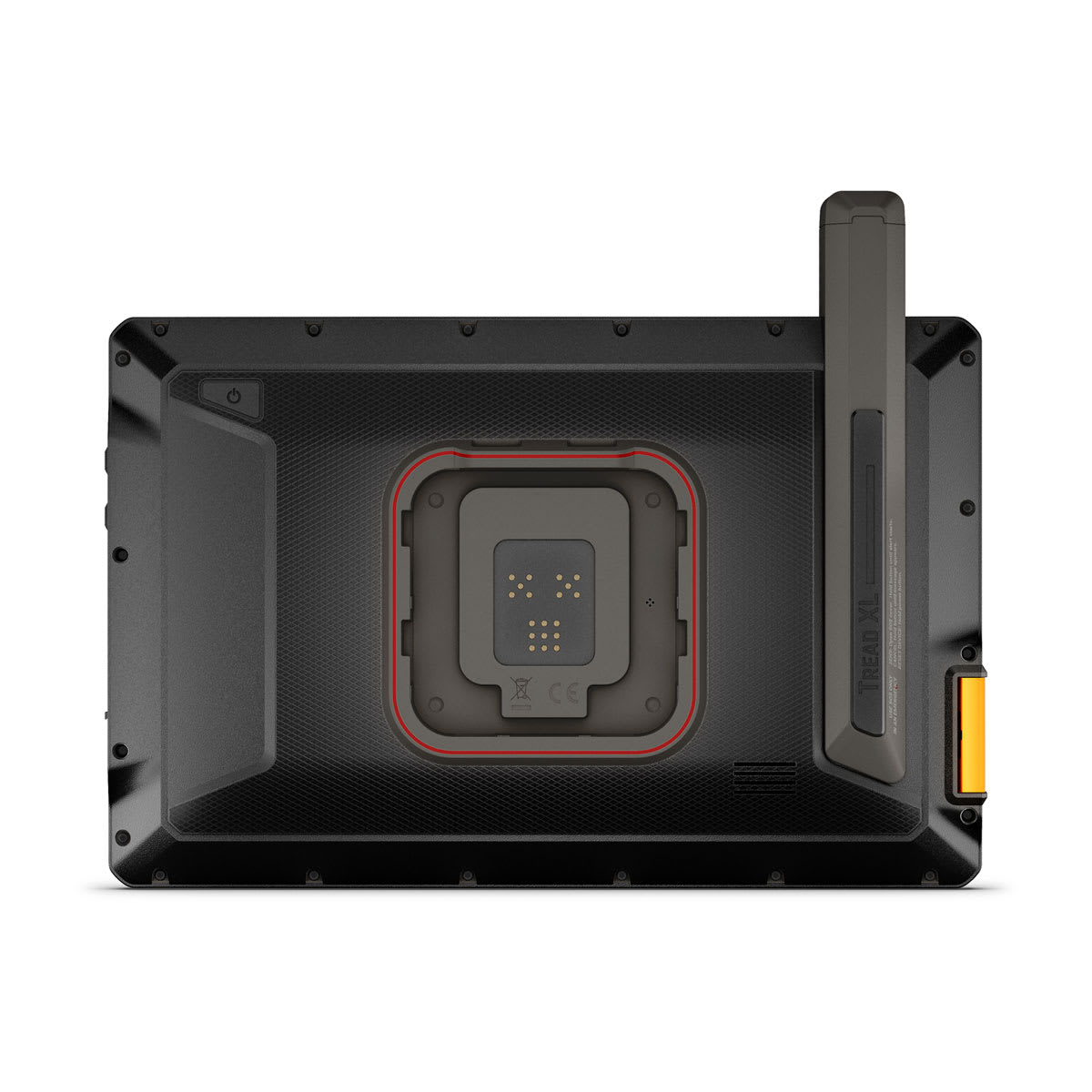

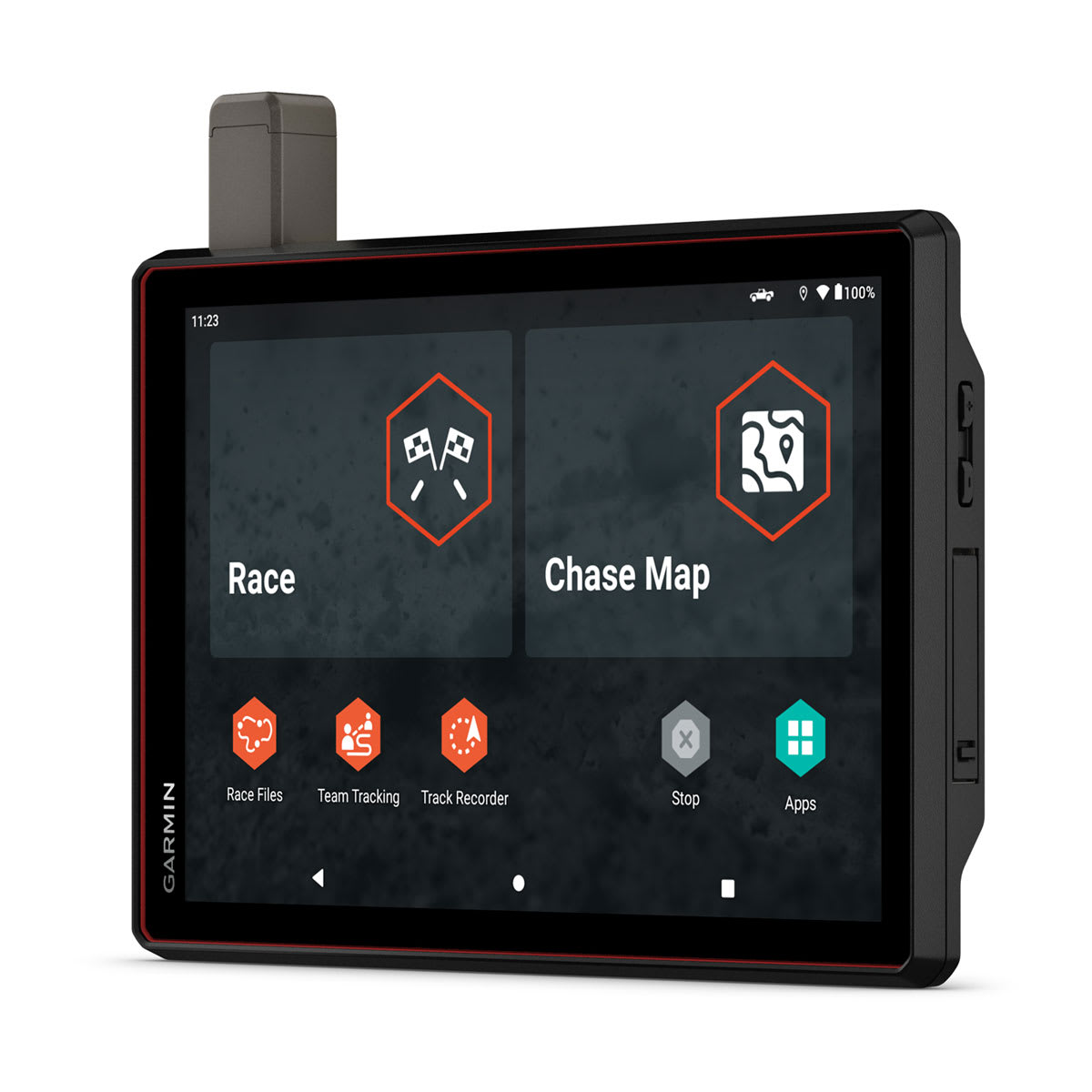

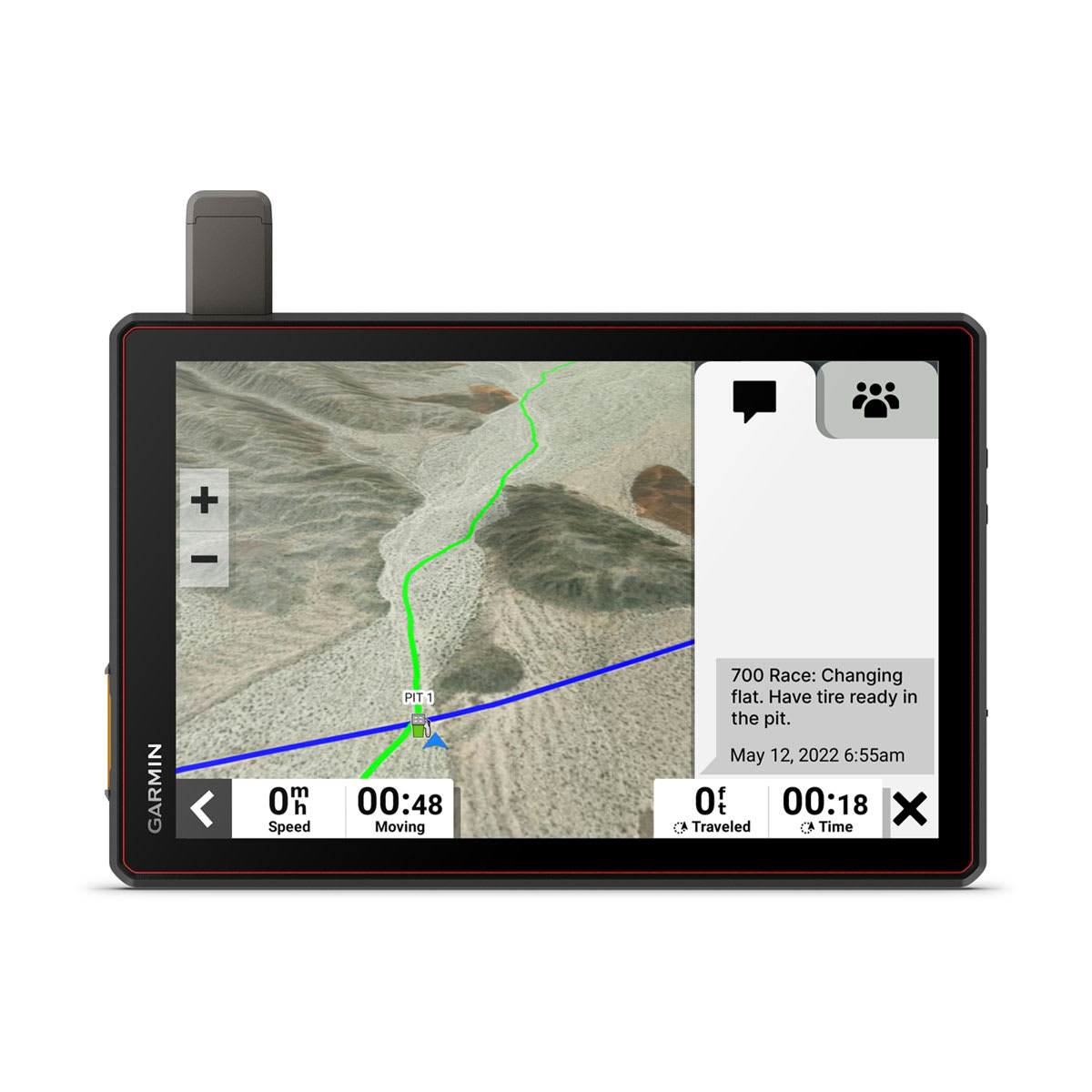

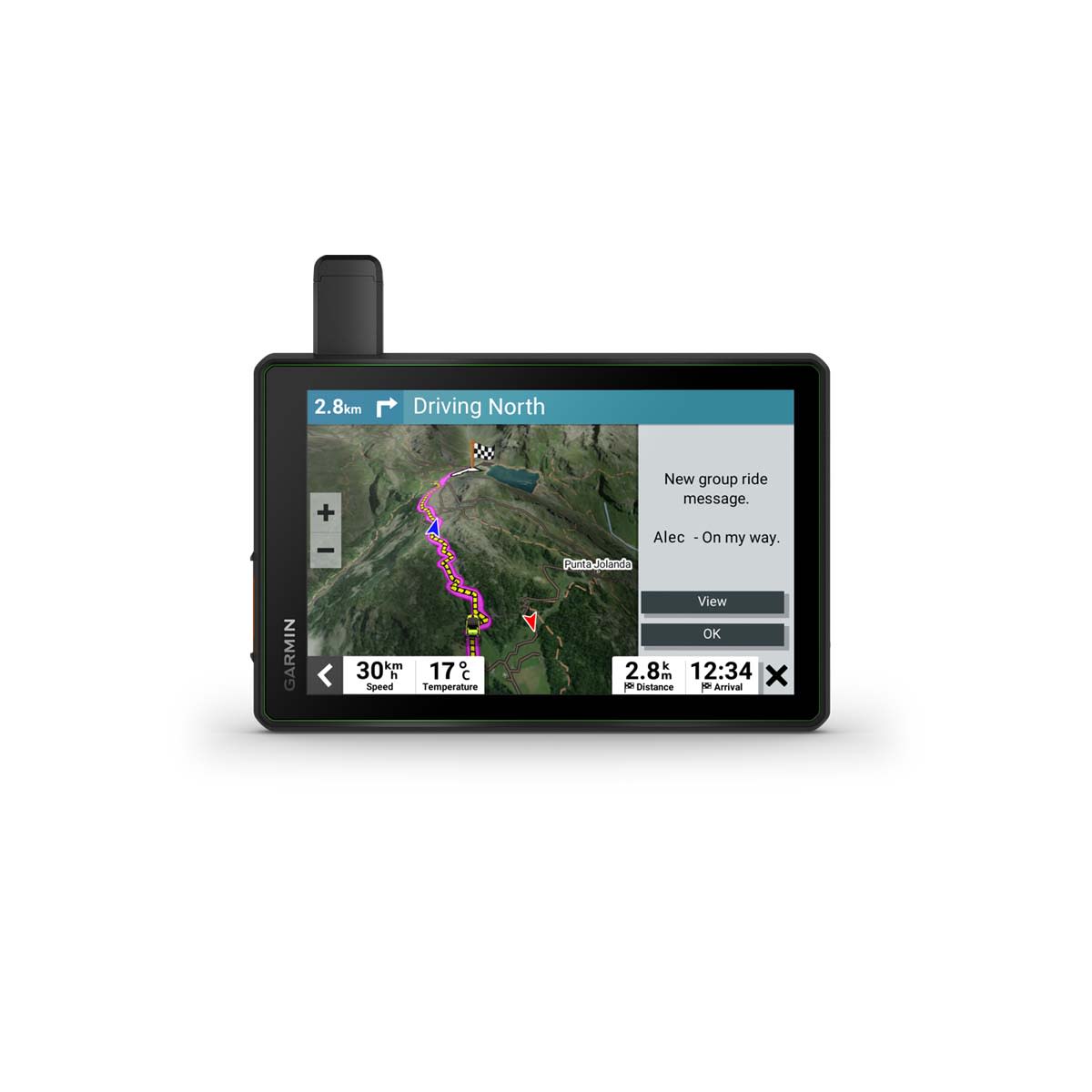

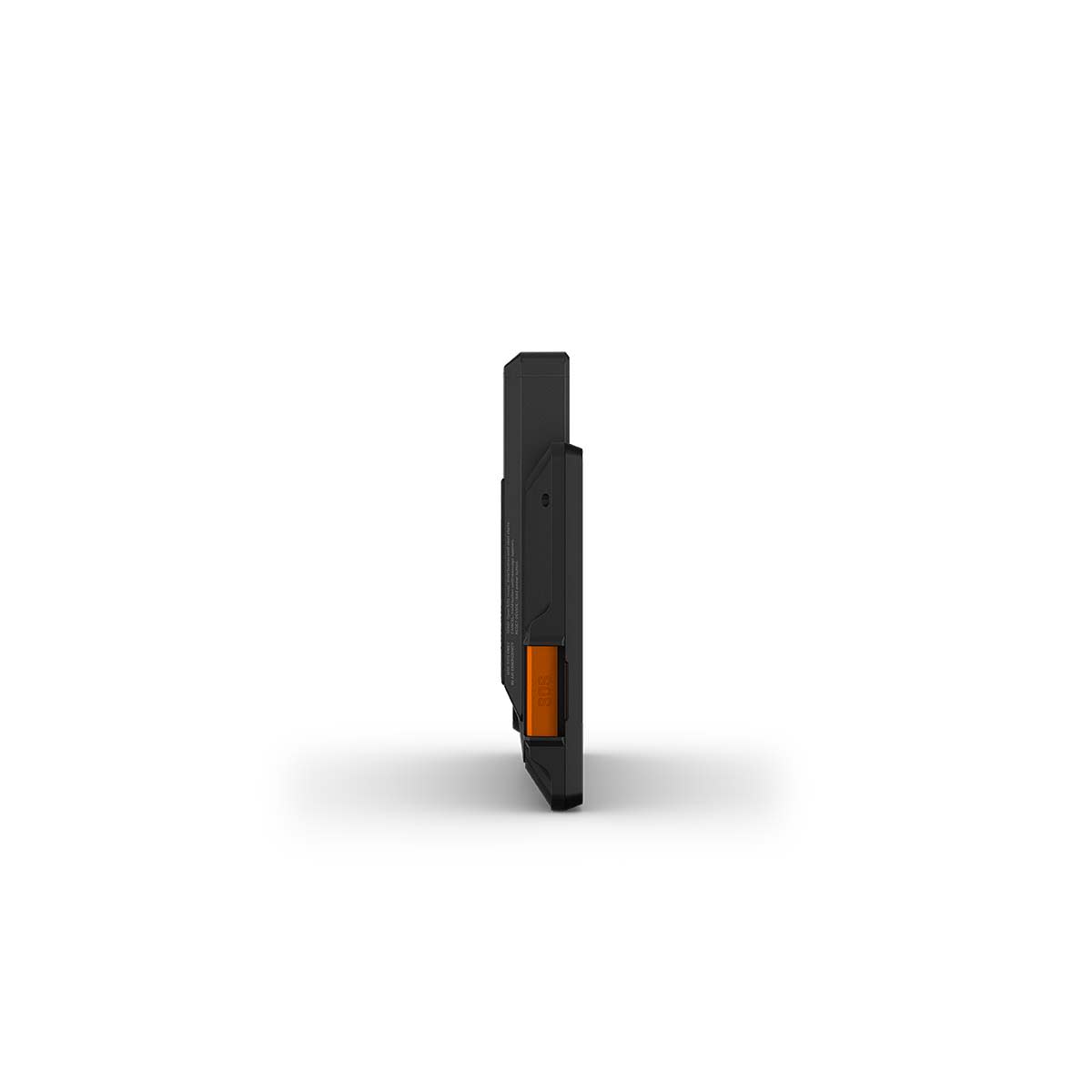

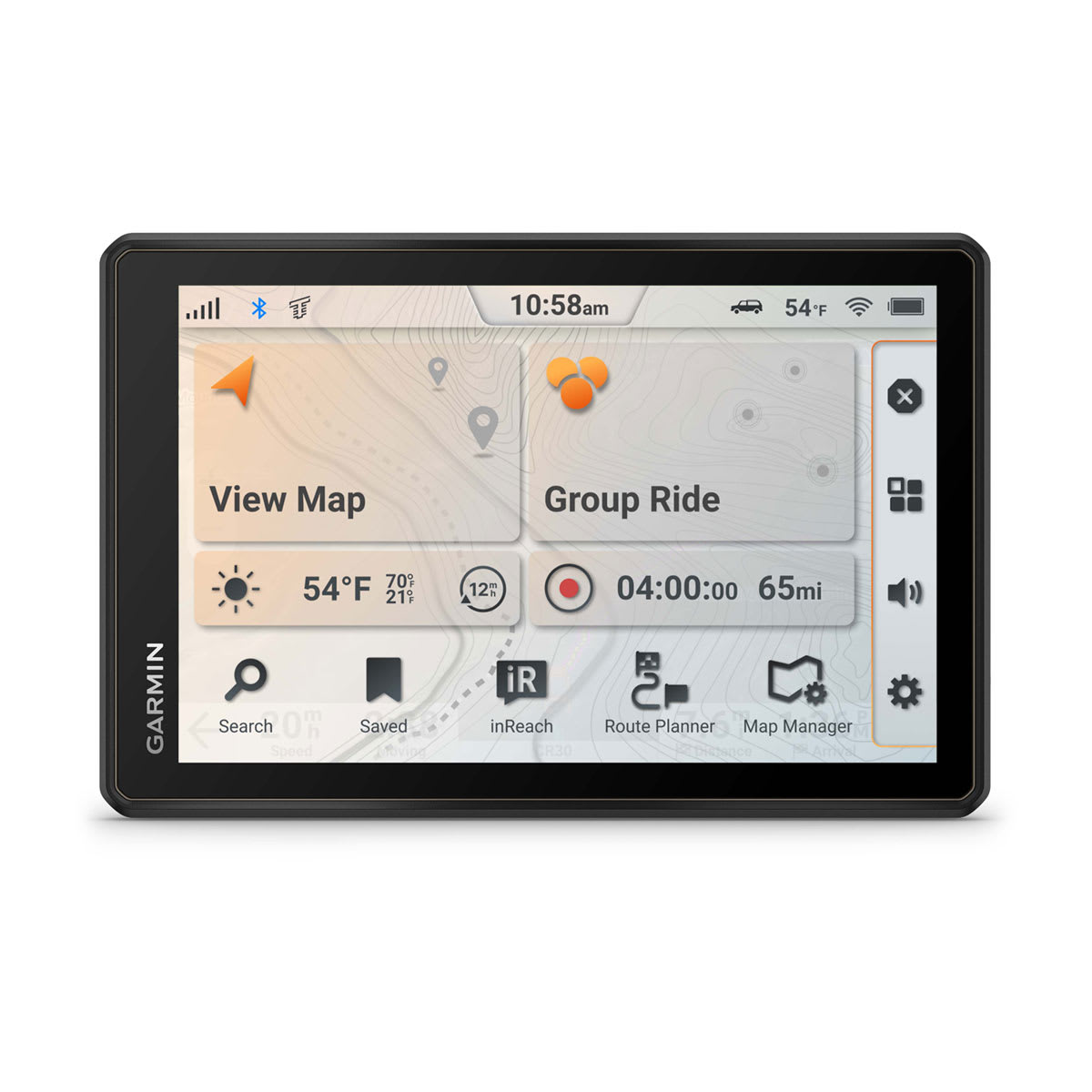

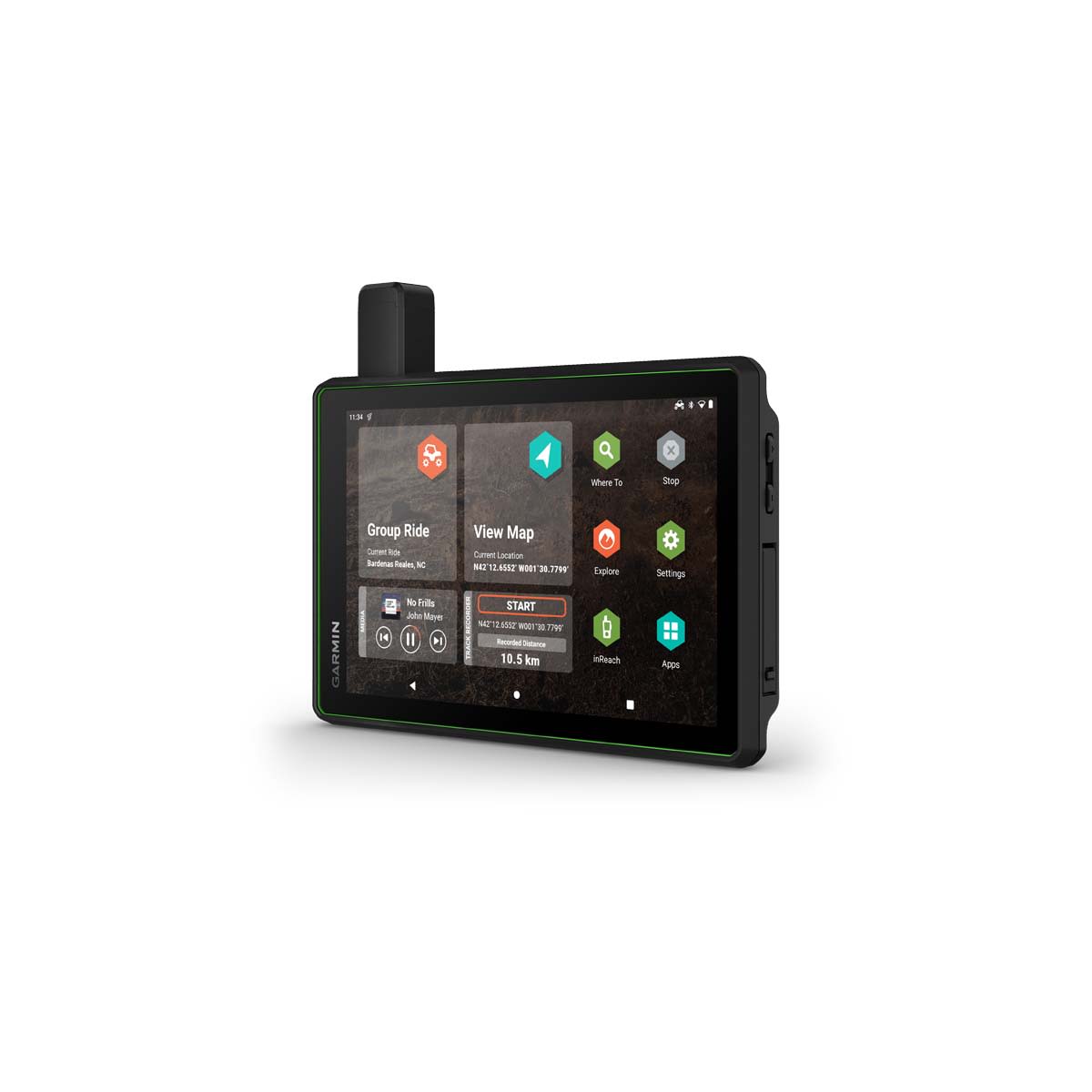

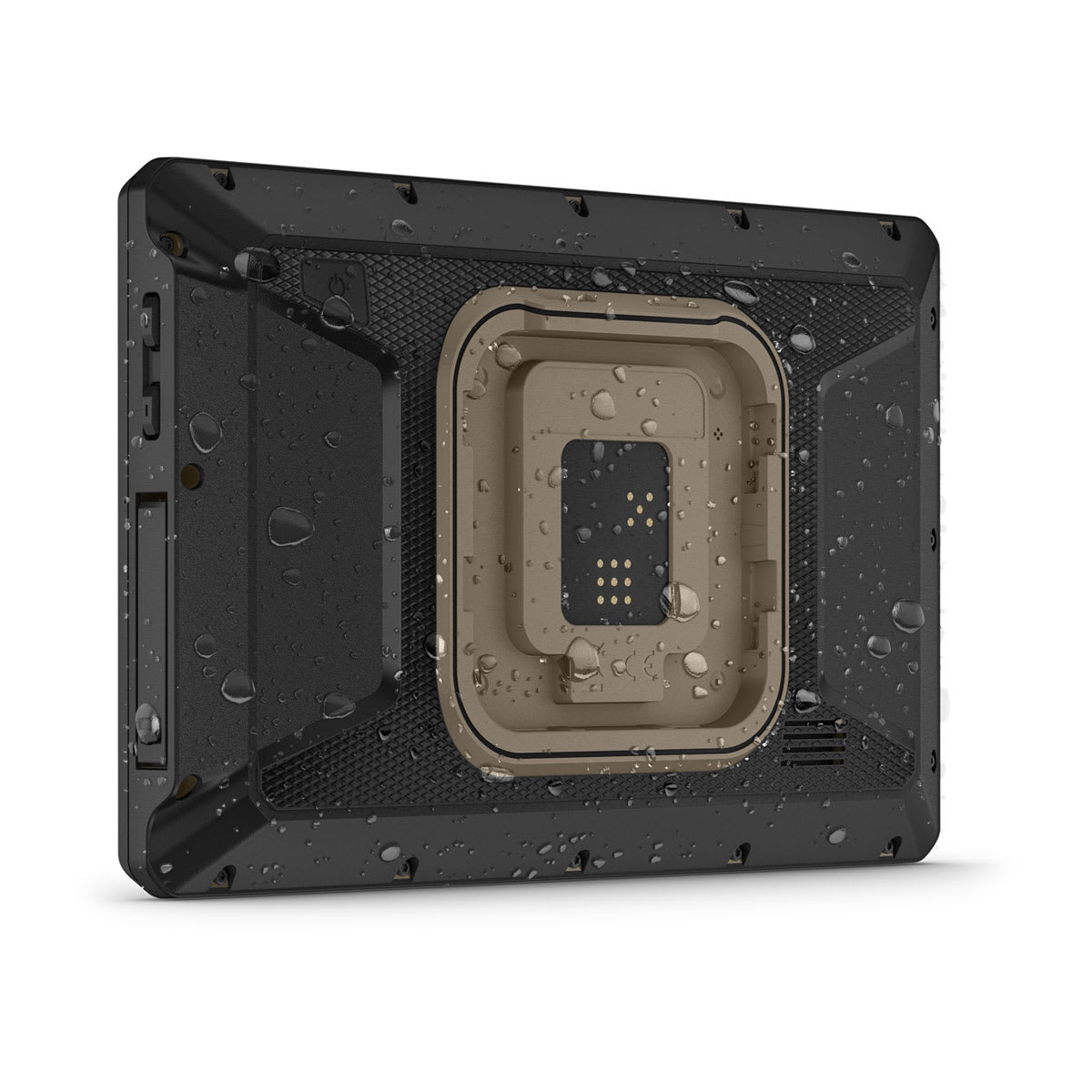

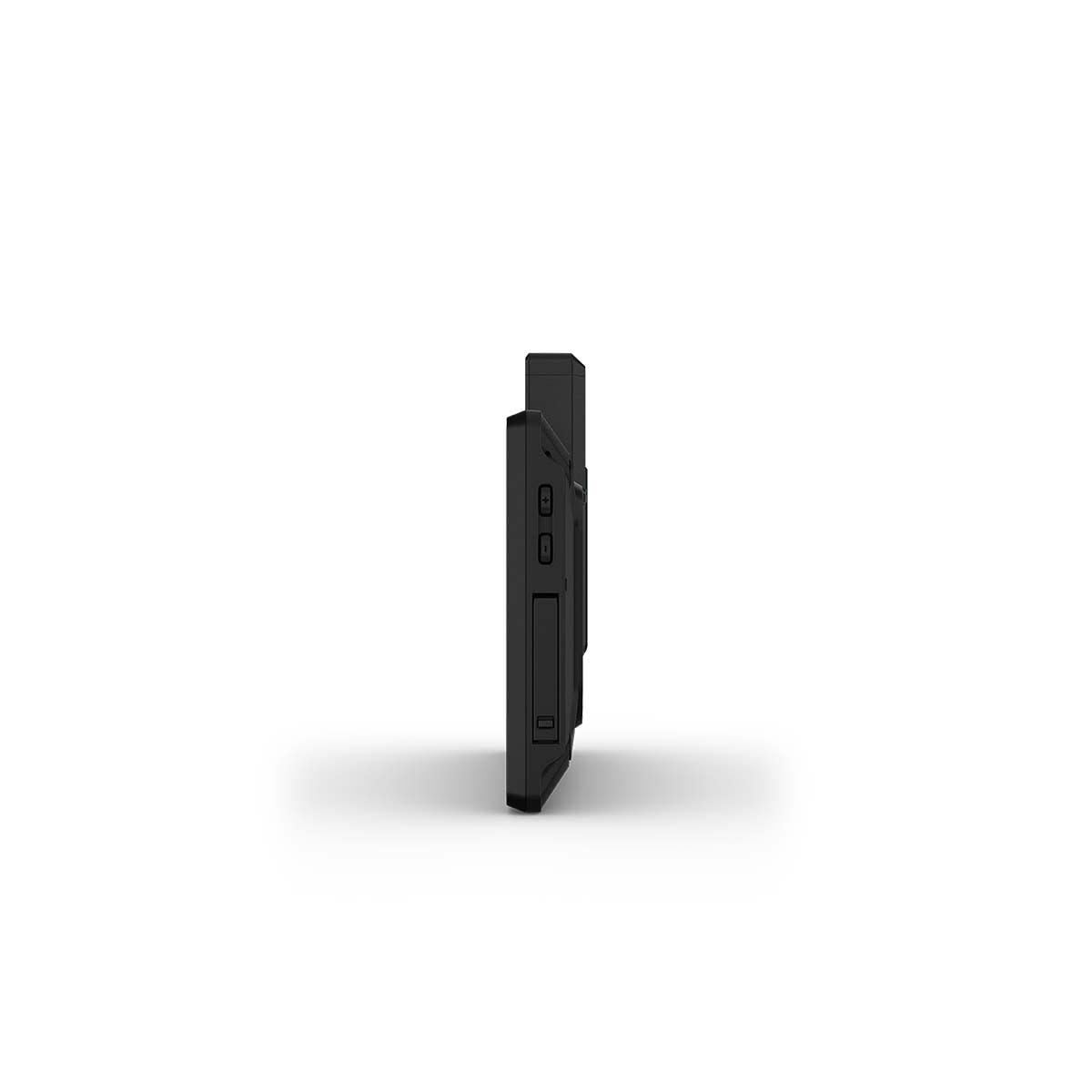

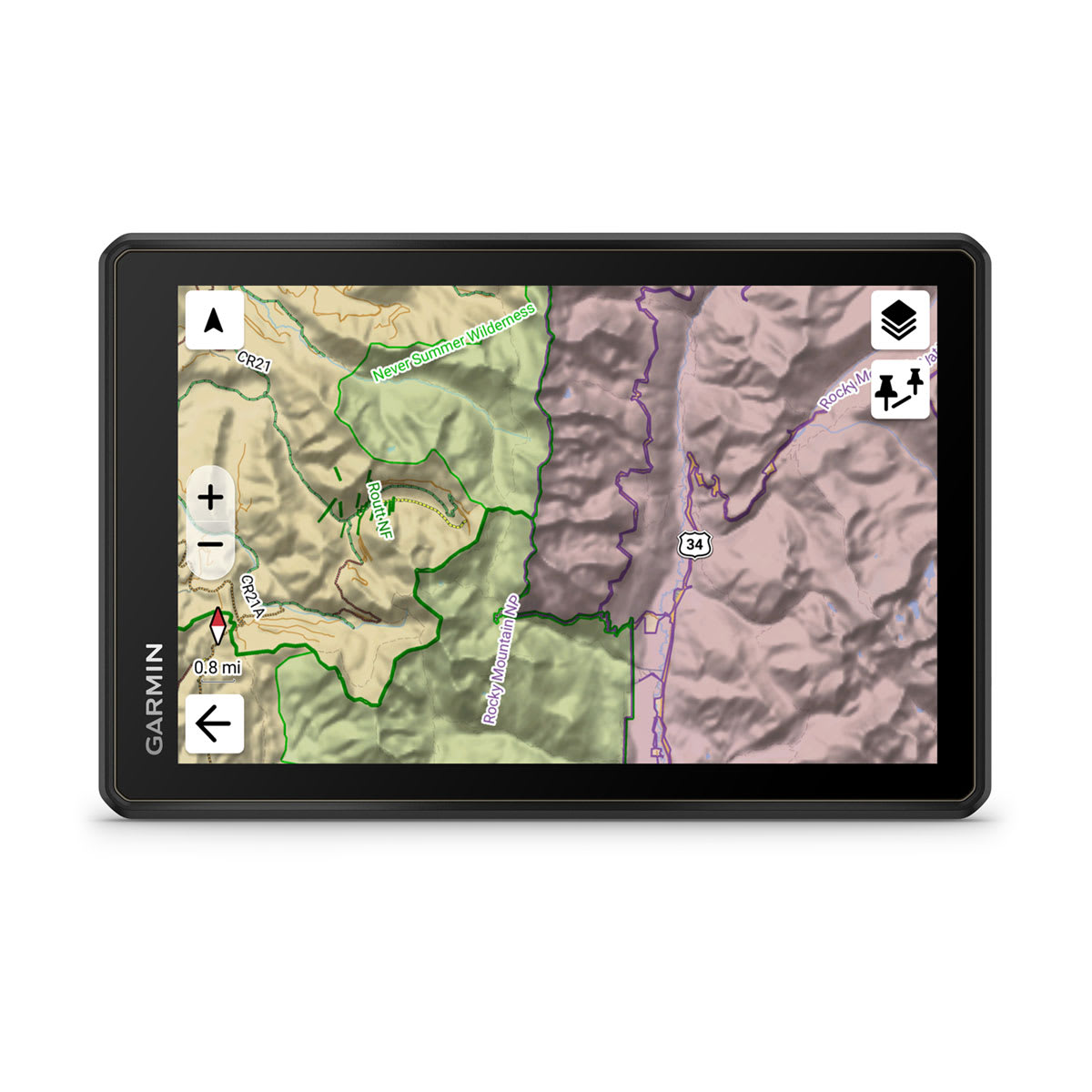

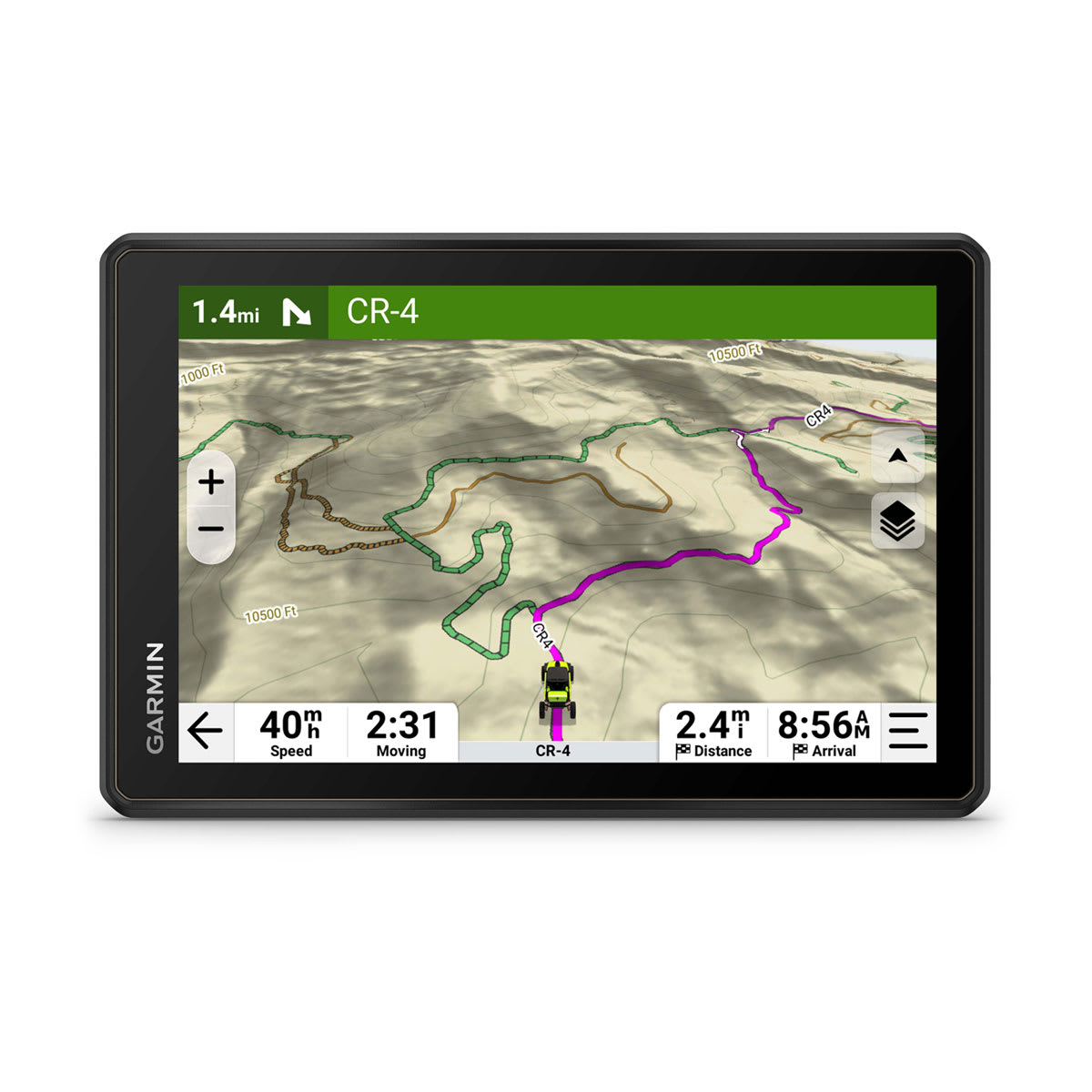

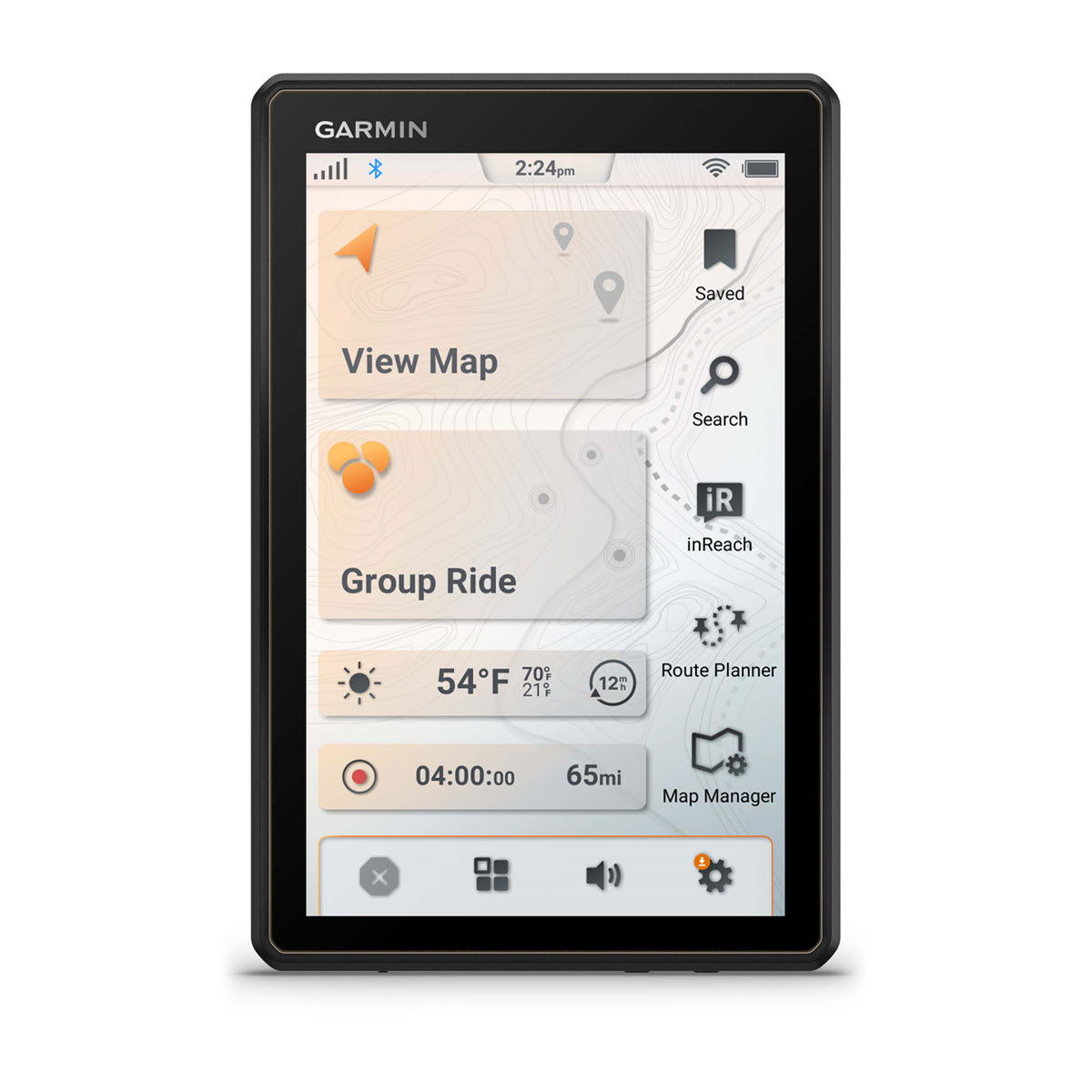

Step up to the 8″ Tread 2 Overland Edition for touring, the 8″ SxS Edition with Group Ride Tracker for side-by-sides, or the 10″ XL Baja Chase Edition for chase vehicles.
Best for: 4WD tourers, farmers and side-by-side riders. Tell us how you drive and we'll help you pick the right screen size. We also stock the Tread XL Overland Edition.
Key features
- Ultrabright glove-friendly 6″ display
- Preloaded topographic maps with landmarks
- Built for extreme weather
- Satellite imagery shows vivid overhead views of your route
- Supports Outdoor Maps+ for premium mapping (subscription required)
- Use the Tread app on your compatible smartphone for easy route planning and more
In the box
- Tread 2
- Tube mount kit
- Power Cable
- USB cable
- Documentation
Shown for Tread® 2 – 6″; contents vary slightly by model.
Specifications
| Spec | Tread® 2 – 6″ | Tread® 2 – Overland Edition, 8″ | Tread® – SxS Edition, 8″ | Tread® XL – Baja Chase Edition, 10″ |
|---|---|---|---|---|
| General | ||||
| Dimension | 15.6 x 8.9 x 2.5 (6.15"W x 3.5"H x 1"D) | 20.6 x 13.7 x 2.8 cm (8.1″W x 5.4″H x 1.1″D) | 8.1"W x 6.7"H x 1.2"D (20.7 x 16.9 x 3.1 cm) | 25.2 x 19.9 x 3.1 cm (9.9″W x 7.8″W x 1.2″D) |
| Weight | 340 g (12 oz) | 627 g (22.1 oz) | 22.8 oz (646 g) | 930 g (32.8 oz) |
| Water rating | IPX7 | IPX7 | IPX7 | IPX7 |
| Display Type | Multi-touch, glass, high brightness HD colour TFT with white backlight | Multi-touch, glass, high brightness HD colour TFT with white backlight | Multi-touch, glass, high brightness HD colour TFT with white backlight | Multi-touch, glass, high brightness HD colour TFT with white backlight |
| Display Size | 13.3 x 7.5 (5.3"W x 3" H); 15.3 cm diag (6") | 10.8 cm x 17.2 cm (6.8″W x 4.2″H); 20.3 cm diagonal (8″) | 6.8"W x 4.2"H (17.2 cm x 10.8 mm); 8" diagonal (20.3 cm) | 21.7 cm x 13.6 cm (8.5″W x 5.3″H); 25.7 cm diagonal (10.1″ ) |
| Display Resolution | 1280 x 720 pixels | 1280 x 800 pixels | 1,280 x 800 pixels | 1280 x 800 pixels |
| Dual-Orientation Display | Yes | Yes | Yes | Yes |

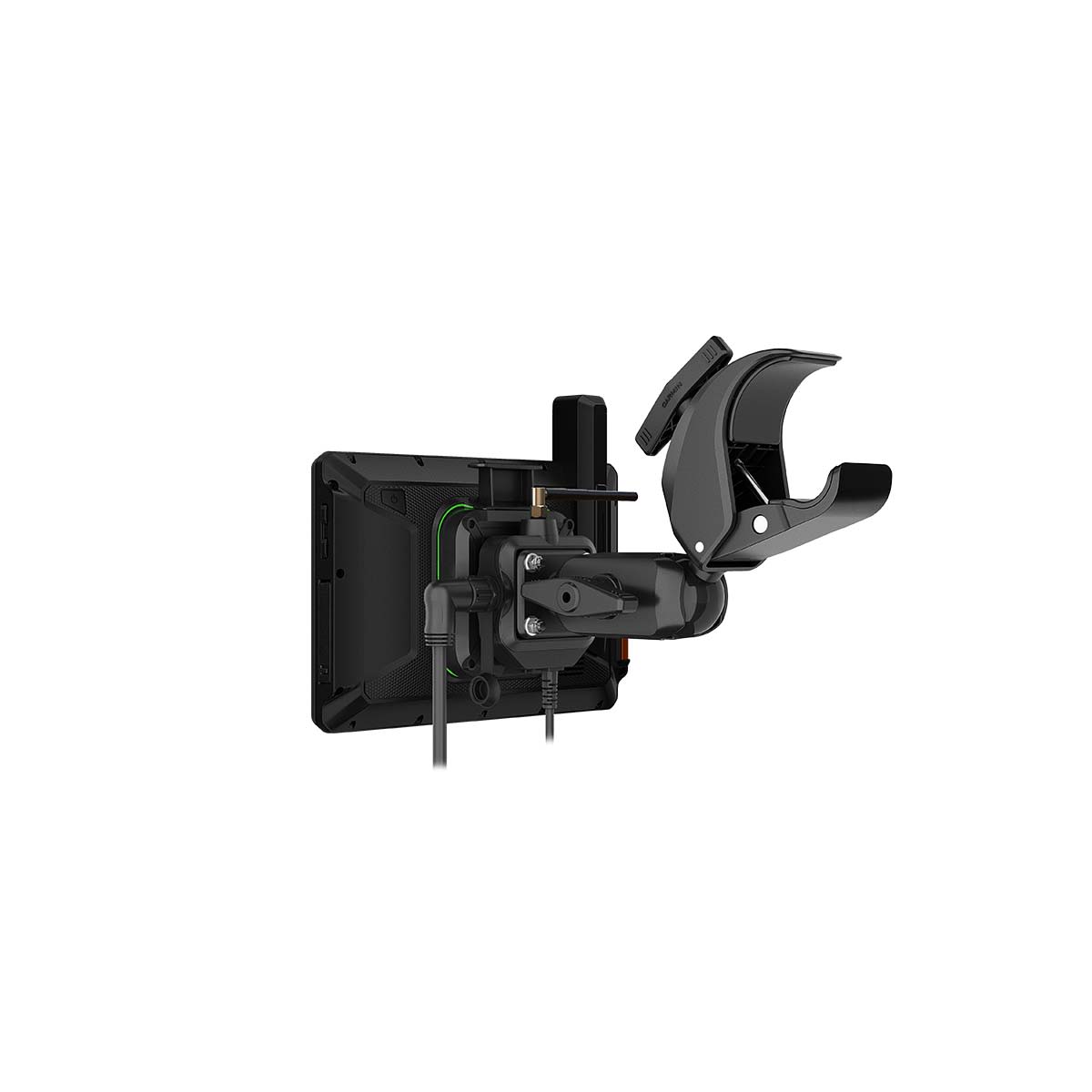

| Tube mount (1.5" - 2.375") | Yes | Yes | ||
| Handlebar mount (up to 1 inch) | Yes (smaller tube mount) | |||
| 1-inch ball adapter with AMPS plate | Yes | |||
| Drop rating | MIL-STD-810 | MIL-STD-810 | MIL-STD-810 | MIL-STD-810 |
| Dust rating | IP6X | IP6X | IP6X | IP6X |
| Battery type | Rechargeable lithium-ion | Rechargeable lithium-ion | Rechargeable lithium-ion | Rechargeable lithium-ion |
| Battery life | Up to 7 hours (up to 5 hours at 100% backlight) | Up to 6 hours at 50% backlight Up to 1 hour at 100% backlight | Up to 6 hours at 50% backlight Up to 1 hour at 100% backlight | Up to 6 hours at 50% backlight Up to 1 hour at 100% backlight |
| Maps & Memory | ||||
| Data cards | microSD™ card (not included) | microSD™ card (not included) | microSD™ card (not included) | microSD™ card (not included) |
| Preloaded street maps | Yes | Yes | Yes | Yes |
| High-definition 3D terrain | Yes | Yes | Yes | |
| 3D Terrain | Yes | Yes | Yes | Yes |
| Internal storage | 64 GB | 64 GB | 32 GB | 128 GB |
| Ability to add maps | Yes | Yes | Yes | Yes |
| External memory storage | Yes (256 GB max microSD™ card) | Yes (256 GB max microSD™ card) | Yes (256 GB max microSD™ card) | Yes (256 GB max microSD™ card) |
| Includes map updates | Yes | Yes | Yes | Yes |
| Downloadable Satellite Imagery | Yes | Yes | yes (BirdsEye) | yes (BirdsEye) |
| TOPO map support | Yes | Yes | Yes | |
| Sensors | ||||
| GPS | Yes | Yes | Yes | Yes |
| Galileo | Yes | Yes | Yes | Yes |
| Barometric altimeter | Yes | Yes | Yes | Yes |
| Compass | Yes | Yes | Yes | Yes |
| 10 Hz multi-GNSS positioning | Yes | Yes | Yes | Yes |
| Outdoor Recreation | ||||
| Preloaded topographical maps | Yes | Yes | Yes | Yes |
| Preloaded USFS Roads and Trails, including motor-vehicle-use-maps for motorcycle, ATV, SXS and full-size 4x4 | Yes | Yes | Yes | |
| Navigate-a-track navigation | Yes | Yes | Yes | Yes |
| Turn-by-turn trail navigation | Yes | Yes | Yes | Yes |
| Compatible with Outdoor Maps+ Subscription | Yes | Yes | Yes | |
| Mapping & Navigation | ||||
| Point-to-point navigation | Yes | Yes | Yes | Yes |
| Camera Features | ||||
| Backup camera compatible | Yes (BC™ 50 only) | Yes (BC™ 50 only) | yes (BC™ 50 only) | yes (BC™ 50) |
| Navigation Features | ||||
| Garmin Real Directions™ landmark guidance | Yes | Yes | Yes | |
| TripAdvisor® traveler ratings | Yes | Yes | Yes | |
| Route shaping through preferred cities/streets | Yes | Yes | Yes | |
| Includes traffic | Yes (with Garmin Tread app) | Yes (with Garmin Tread app) | Yes (with Garmin Tread app) | |
| Lane assist with junction view (displays junction signs) | Yes | Yes | Yes | |
| Bluetooth® pairing | Yes (works with Bluetooth-compatible helmet, headset or smartphone. BLE capable.) | Yes (works with BLUETOOTH-compatible helmet, headset or smartphone; BLE capable) | yes (works with BLUETOOTH-compatible helmet, headset or smartphone; BLE capable) | |
| Speed limit indicator (displays speed limit for most major roads in Australia and New Zealand) | Yes | Yes | Yes | |
| Advanced Features | ||||
| Smart notifications via app | Yes | Yes | Yes | |
| Wi-Fi® map and software updates | Yes | Yes | Yes | Yes |
| Access to live services via app (traffic, weather, etc.) | Yes | Yes | Yes | |
| Motorcycle Features | ||||
| Control music and media from smartphone or MP3 player | Yes | Yes | Yes | |
| Sunlight readable and weather resistant | Yes | Yes | Yes | |
| GARMIN ADVENTUROUS ROUTING™ | Yes | Yes | Yes | |
| Elevation profile | Yes | Yes | Yes | |
| Round trip routing | Yes | Yes | Yes | |
| Custom map support | Yes | Yes | Yes | |
| Wireless ANT+ technology | Yes | |||
| RV Features | ||||
| Specialized routing for the size and weight of your vehicle | Yes | Yes | Yes | |
| Speed limit changes | Yes | Yes | Yes | |
| Easy Route Planner with GPX file sharing | Yes | Yes | Yes | |
| Adventure Features | ||||
| Pair with compatible inReach® devices | Yes | |||
| Pair with Garmin PowerSwitch™ digital switch box | Yes | Yes | Yes | Yes |
| Compatible with handlebar controller | Yes | Yes | ||
| Compatible with Group Ride Tracker (6”, 8” and 10”) | Yes | Yes | Yes (included) | Yes |
| Group Ride Mobile | Yes (with Garmin Tread app) | Yes (with Garmin Tread app) | Yes (with Garmin Tread app) | Yes (with Garmin Tread app) |

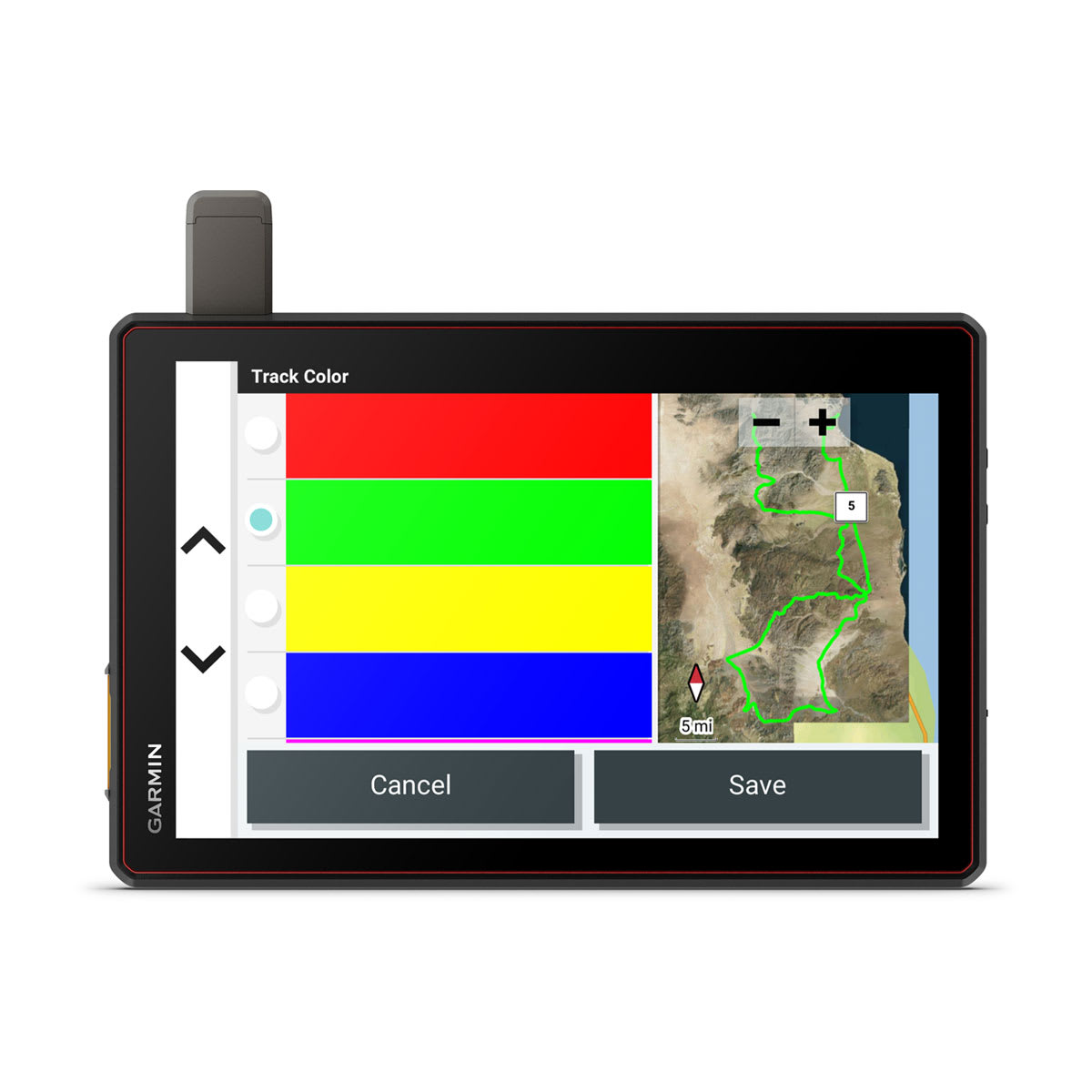

| Track recorder (breadcrumbs) | Yes | Yes | Yes | Yes |
| Compatible with the Garmin Tread app for route planning and data management (waypoints, tracks, and routes) | Yes | Yes | Yes | |
| Ultimate Public Campgrounds | Yes | Yes | Yes | |
| Pitch and Roll gauges | Yes | Yes | Yes | |
| Glove-friendly touchscreen | Yes | Yes | Yes | Yes |
| Outdoor Applications | ||||
| Dog tracking | Yes | Yes (when paired to compatible dog track system) | Yes (when paired to compatible dog track system) | |
| General | ||||
| Magnetic Mount | locking magnet-assisted mount | locking magnet-assisted mount | locking magnet-assisted mount | |
| 1.5-inch ball adapter with AMPS plate | Yes | Yes | Yes | |
| Outdoor Recreation | ||||
| Preloaded US public land boundaries | Yes | Yes | ||
| Preloaded private land parcel maps | Yes (parcels greater than 4 acres) | Yes (parcels greater than 4 acres) | ||
| RV Features | ||||
| RV Parks & Services directory | Yes | Yes | ||
| Road elevations | Yes | Yes | ||
| Adventure Features | ||||
| Compatible with external GPS antenna with mount | Yes | Yes | Yes | |
| Maps & Memory | ||||
| BirdsEye Direct Satellite Imagery | Yes | Yes | ||
| Motorcycle Features | ||||
| Motorcycle or powersports specific points of interest for cycle repair services, dealers and more | Yes | |||
| Service History Log | Yes | |||
| Adventure Features | ||||
| Built-in inReach® Technology (requires active subscription; subject to regulations or prohibitions in some jurisdictions) | Yes | Yes | ||
| Compatible with external inReach® satellite antenna | Yes | Yes | ||
| iOverlander™ points of interest | Yes | Yes | ||
| Birdseye Satellite Imagery (download via Wi-Fi) | Yes | Yes | ||
| Group Ride Radio | ||||
| Radio Frequency Band | MURS (151-154 MHz) | |||
| Group Ride Range | Up to 8 miles (13 kilometres) with the antenna mount kit | |||

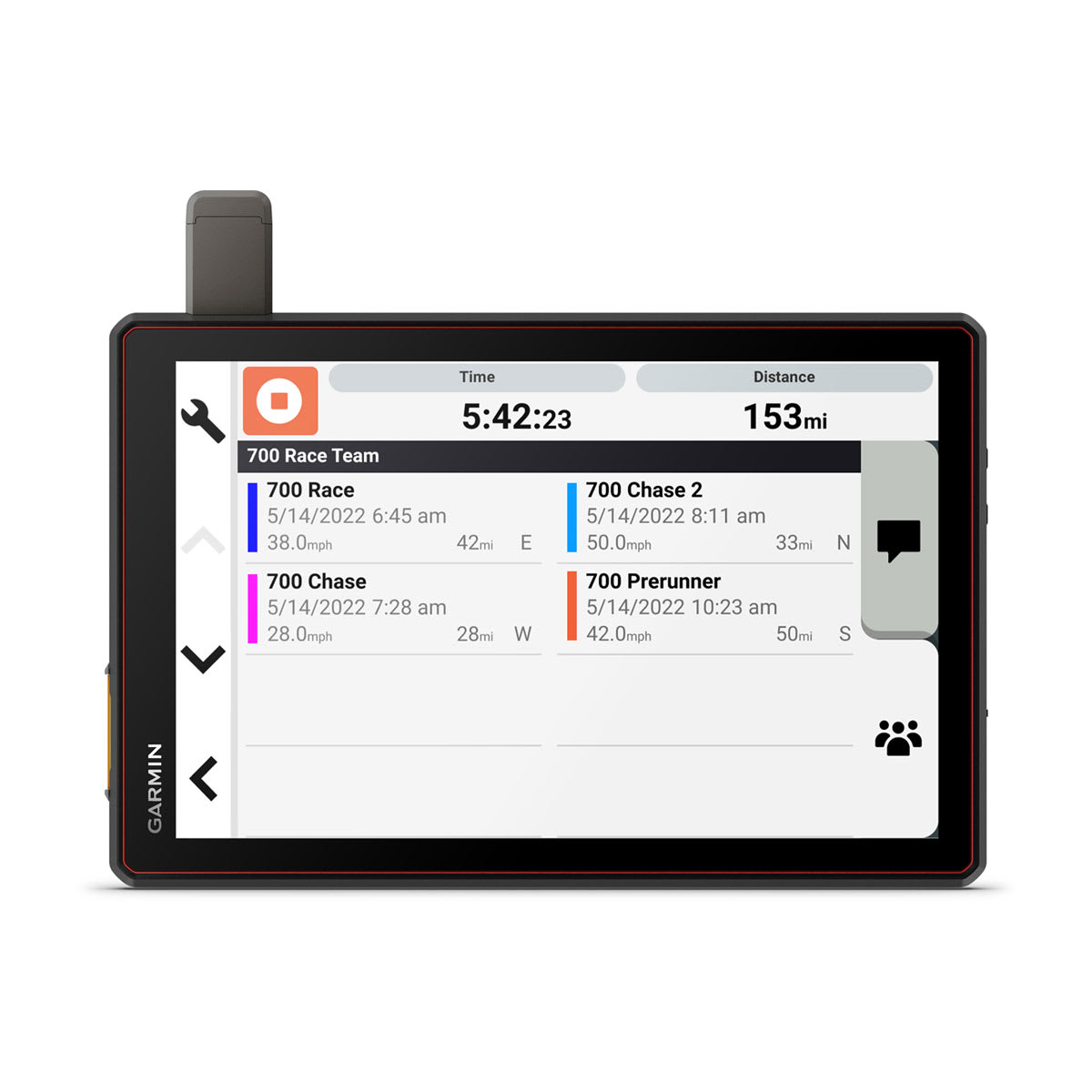

| Group Ride tracking | Up to 20 riders simultaneously | |||
| Group Ride update rate | 2.5 seconds | |||
| Group Ride voice communications | yes (with included fist mic or paired BLUETOOTH headset) | |||
| Fist mic compatibility | Also works with other MURS VHF radios (151 MHz - 154 MHz) | |||
| Radio transmitted canned messages | Yes | |||
| General | ||||

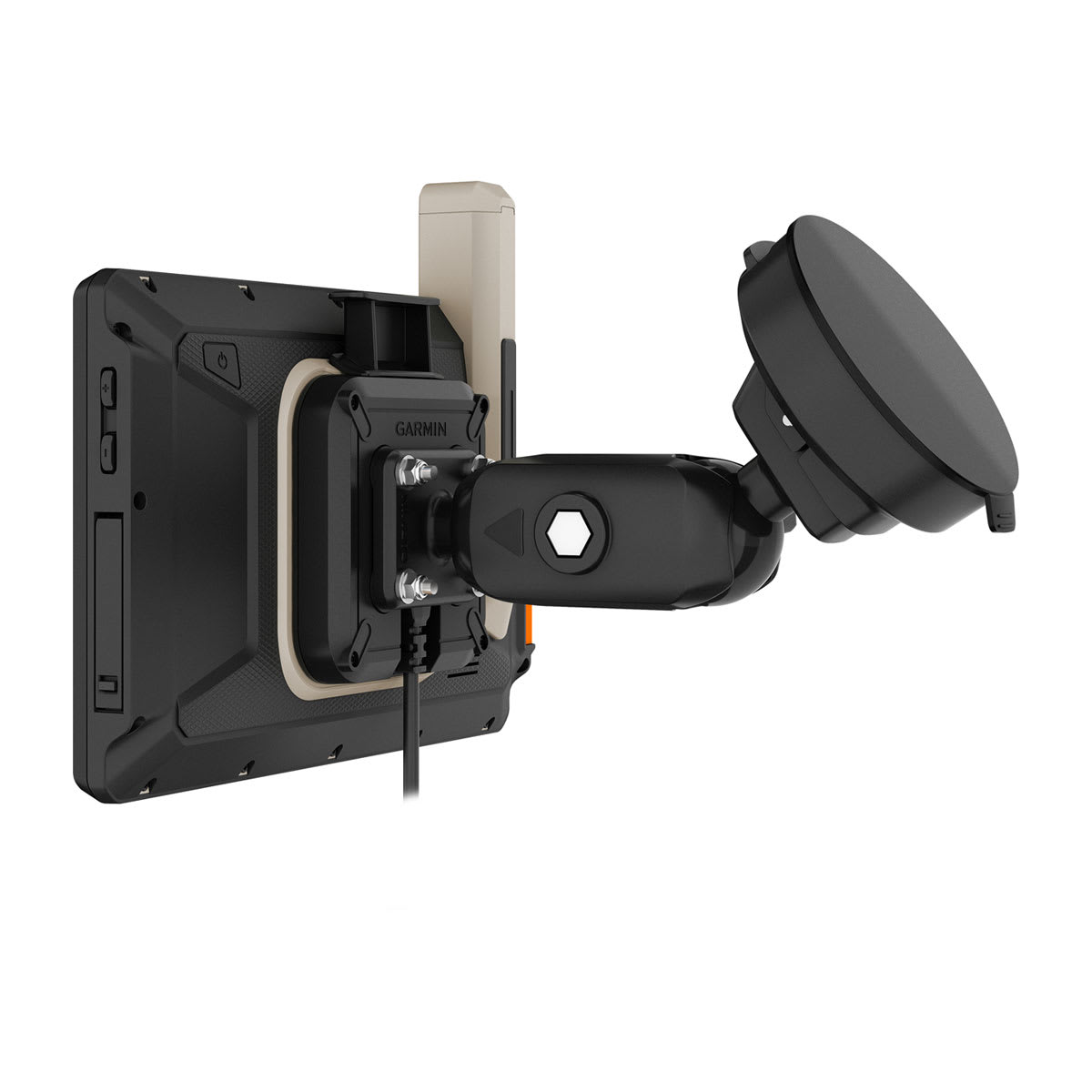

| Mount type | Heavy-duty suction cup mount | |||
| Compatible with Tread XL Baja Dock accessory | Yes | |||
Specifications from Garmin.
