ADM Delta-L 30mm low QD scope mount, black, tactical Auto Lock levers, 1.15 inch centrelineRoll over to zoom
American Defence ADM · Shop the brand

American Defence Manufacturing AD-DELTA-L 30mm Quick Detach Scope Mount - Tactical Lever

Be the first to review · Ask a question SKU: AD-DELTA-L-30-TAC
$420
Sold out
Sold out. Get an email the day it's back.
📦
Stock Availability
Pakenham Store
Out of Stock
Warehouse Availability
Call for stock availability

Loading Add-ons…

1

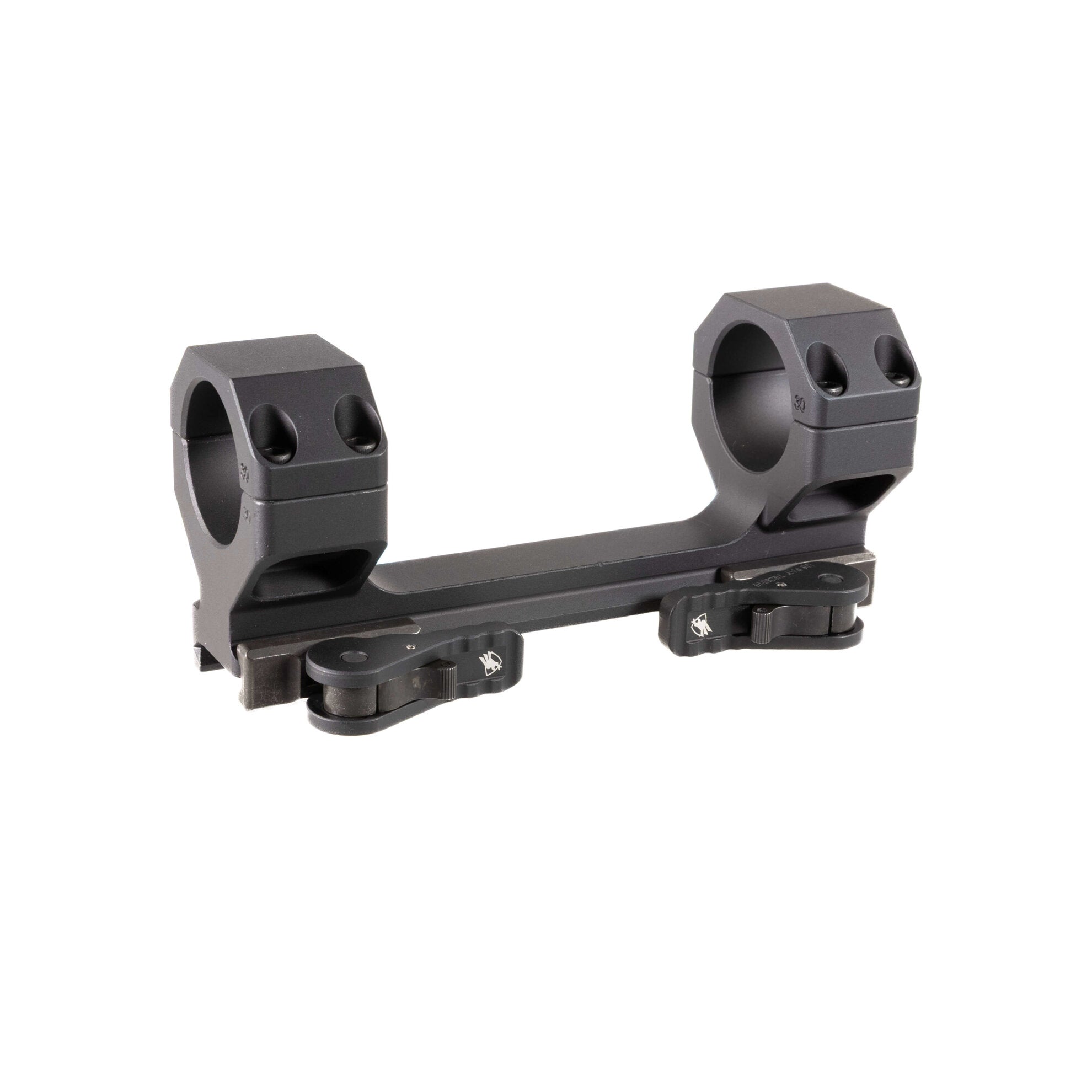

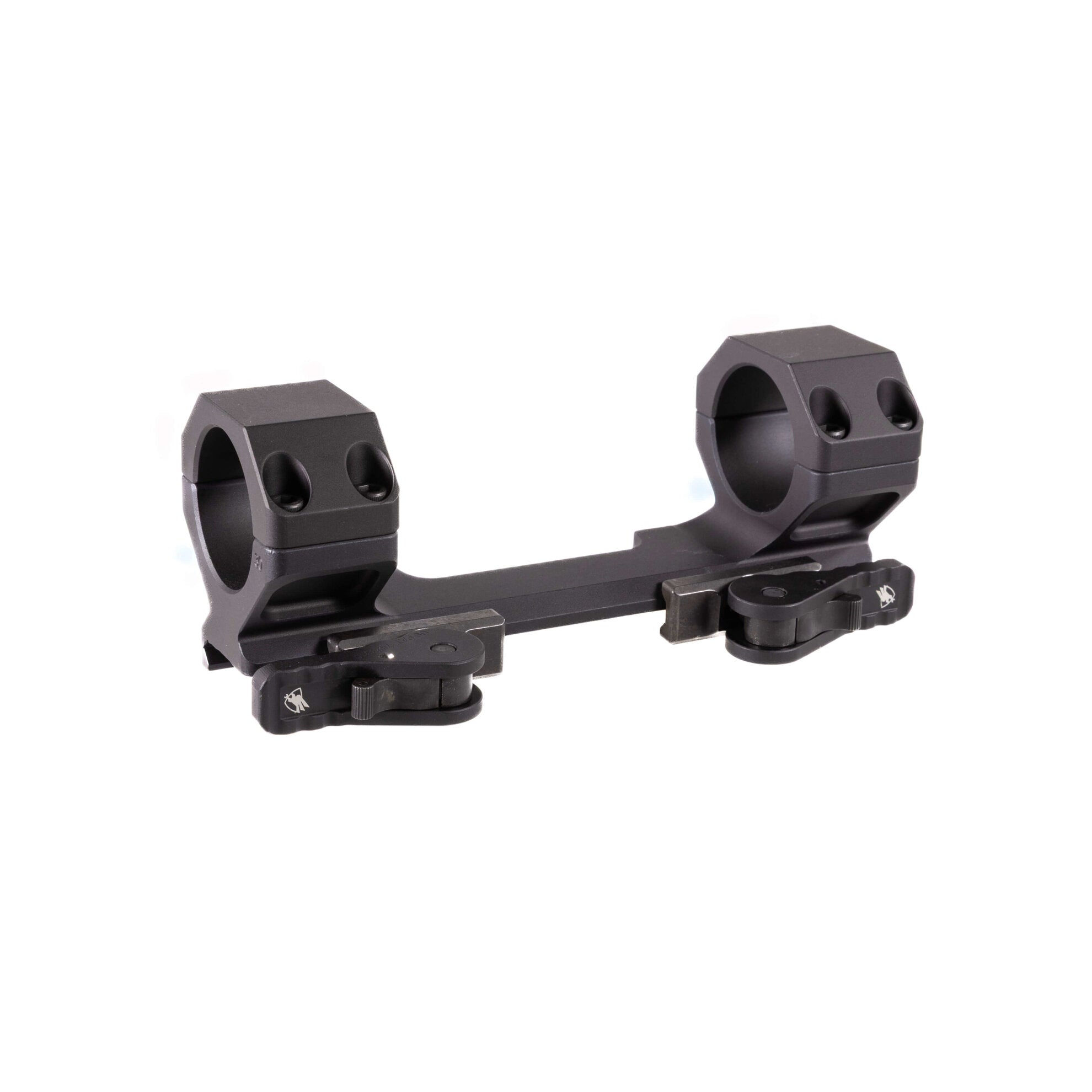

ADM Delta-L 30mm — low 1.15" QD mount with tactical levers

Same AD-DELTA-L as the standard-lever listing: 30mm, 1.15" centreline, straight-up, integrated recoil lugs, Delta ring-cap compatible — specified here with the tactical QD lever. Tactical levers are the larger, glove-friendlier Auto Lock levers; clamp and return-to-zero behaviour is the same system.

Ideal for bolt-action and chassis builds when you want 30mm glass as low as possible. Typically 0 MOA. Black. 6061-T6, Type III hard coat, USA-made, lifetime warranty.

Who it is for

Same buyer as Delta-L STD: 30mm day or thermal tubes on bolt and chassis rifles. Choose TAC if you prefer the larger lever; choose STD if you want the slimmer original lever (we are listing both).

Which ADM mount to choose

Delta is the straight-up (no cantilever) family with horizontally split rings and a more robust, fewer-moving-parts design. Standard Delta sits 1.5" centreline on 30mm rings — a common height for SCAR, AR-10 and flattop rifles that already have the eye relief you need.

Delta-L is the low Delta: 1.15" centreline on 30mm, with integrated recoil lugs. Choose it for bolt-action and chassis rifles when you want the optic as low as the rail and objective will allow.

Recon is the cantilever family: 2" of forward offset for AR-15 / flattop eye relief, vertically split rings, and clearance for objectives up to 56mm. Standard Recon 30mm centreline is 1.472". Recon-M raises that to 1.640" for extra objective or laser clearance, or a more heads-up cheek weld.

Recon-S is a straight-up Recon (no cantilever) for AR-10, Galil, bolt and lever guns on a full-length rail. This listing is the 1-inch ring version (25.4mm), 1.381" centreline.

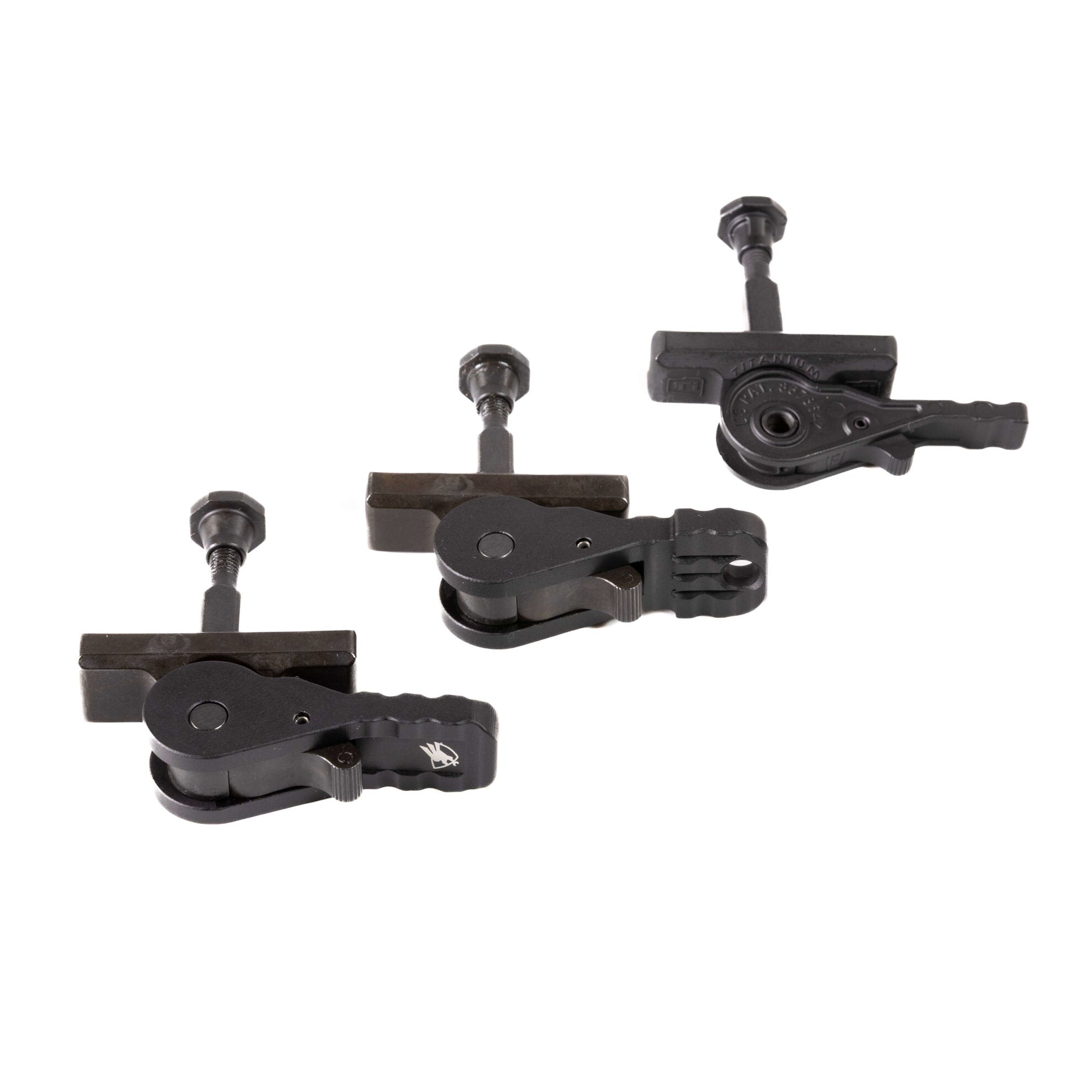

Standard (STD) lever is the slimmer original Auto Lock lever. Tactical (TAC) is the larger, glove-friendlier lever with a more aggressive grip — same QD Auto Lock system. Neither needs a proprietary tool; adjust with a finger or flat blade.

Specifications

Manufacturer American Defence Manufacturing (ADM)
Model / SKU AD-DELTA-L-30-TAC
Family AD-Delta (Delta-L low)
Ring size 30mm
Centreline height 1.15" (30mm Delta-L)
Built-in MOA 0 MOA (standard / no cant — typical for this SKU)
Cantilever / offset None — straight-up
Lever Tactical QD Auto Lock
Colour Black
Ring split Horizontal (Delta family)
Recoil lugs Integrated (Delta-L)
Rail Picatinny (MIL-STD-1913), in-spec and out-of-spec
Material 6061-T6 aluminium
Finish Type III hard coat Mil-Spec anodise
Weight 8 oz (226.8 g) — Delta family listing; Delta-L not listed separately
Origin Made in USA
Warranty Lifetime (ADM)

Key features

  • Patented QD Auto Lock lever system — no proprietary tools; finger or flat-blade adjustment
  • Lever can be configured to lock to the front or the rear
  • Superior clamping surface for maximum rail engagement
  • Fully adjustable to fit both in-spec and out-of-spec Picatinny rails
  • Precision CNC machined from 6061-T6 aluminium
  • Type III hard coat Mil-Spec anodise
  • Made in the USA — American Defence Manufacturing lifetime warranty
  • 1.15" centreline — lowest 30mm Delta
  • Tactical (larger, glove-friendly) Auto Lock levers
  • Integrated recoil lugs; Delta ring-cap compatible

Made in the USA by American Defence Manufacturing. Lifetime warranty. Hunt The Night is an Australian retailer — GST-inclusive pricing, ships Australia-wide.
